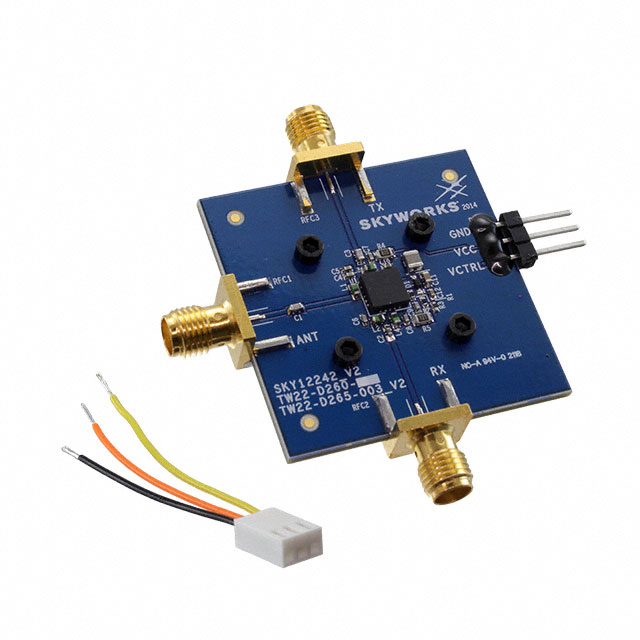

SKY12242-492LF-EVB

Active

Skyworks Solutions Inc.

EVALUATION BOARD/KIT

Search across all available documentation for this part.

Active

Skyworks Solutions Inc.

EVALUATION BOARD/KIT

Technical Specifications

Parameters and characteristics for this part

Specification	SKY12242-492LF-EVB

For Use With/Related Products	SKY12242-492LF
Frequency [Max]	3 GHz
Frequency [Min]	1.8 GHz
Supplied Contents	Board(s)
Type	Switch, SPDT

Part	Frequency [Max]	Frequency [Min]	Supplied Contents	Type	For Use With/Related Products	P1dB	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Frequency Range [Max]	Frequency Range [Min]	RF Type	Test Frequency	IIP3	Isolation	Insertion Loss	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Impedance	Circuit
Skyworks Solutions Inc. SKY12242-492LF-EVB	3 GHz	1.8 GHz	Board(s)	Switch SPDT	SKY12242-492LF
Skyworks Solutions Inc. SKY12242-492LF						38 dBm	4.5 V	5.5 V	20-LQFN Exposed Pad	3 GHz	1.8 GHz	LTE	3 GHz	68 dBm	12 dB	0.8 dB	Surface Mount	105 °C	-40 °C	20-QFN (5x5)	50 Ohms	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 106.24

General part information

- SKY12242-492LF Switch, SPDT 1.8GHz ~ 3GHz Evaluation Board

Technical documentation and resources

No documents available
