R30-5001602

Active

Harwin Inc.

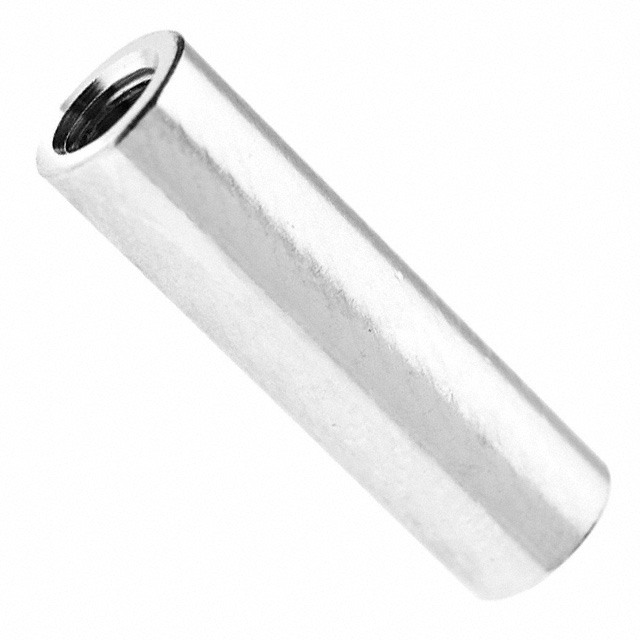

M3 THREADED CIRCULAR BRASS SPACER, ?4.75MM O/D, 16MM BODY LENGTH, NICKEL FINISH

Search across all available documentation for this part.

Active

Harwin Inc.

M3 THREADED CIRCULAR BRASS SPACER, ?4.75MM O/D, 16MM BODY LENGTH, NICKEL FINISH

Technical Specifications

Parameters and characteristics for this part

Part	Gender	Material	Screw, Thread Size	Length - Overall [x]	Length - Overall [x]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Between Board Height	Between Board Height	Plating	Type	Threaded/Unthreaded	Between Board Height [z]	Between Board Height [z]
Harwin Inc. R30-5000902	Female	Brass	M3x0.5	0.354 in	9 mm	0.1875 in	0.188 "	4.78 mm	0.354 in	9 mm	Nickel	Round Standoff	Threaded
Harwin Inc. R30-5001602	Female	Brass	M3x0.5	0.63 "	16 mm	0.1875 in	0.188 "	4.78 mm			Nickel	Round Standoff	Threaded	16 mm	0.63 in
Harwin Inc. R30-5002002	Female	Brass	M3x0.5	0.787 "	20 mm	0.1875 in	0.188 "	4.78 mm	0.787 in	20 mm	Nickel	Round Standoff	Threaded
Harwin Inc. R30-5001402	Female	Brass	M3x0.5	0.551 "	14 mm	0.1875 in	0.188 "	4.78 mm	0.551 in	14 mm	Nickel	Round Standoff	Threaded
Harwin Inc. R30-5000702	Female	Brass	M3x0.5	0.276 in	7 mm	0.1875 in	0.188 "	4.78 mm	0.276 in	7 mm	Nickel	Round Standoff	Threaded
Harwin Inc. R30-5001202	Female	Brass	M3x0.5	0.472 in	12 mm	0.1875 in	0.188 "	4.78 mm	0.472 in	12 mm	Nickel	Round Standoff	Threaded
Harwin Inc. R30-5001802	Female	Brass	M3x0.5	0.709 "	18 mm	0.1875 in	0.188 "	4.78 mm	0.709 in	18 mm	Nickel	Round Standoff	Threaded
Harwin Inc. R30-5001002	Female	Brass	M3x0.5	0.394 "	10 mm	0.1875 in	0.188 "	4.78 mm	0.394 in	10 mm	Nickel	Round Standoff	Threaded
Harwin Inc. R30-5000602	Female	Brass	M3x0.5	0.236 in	6 mm	0.1875 in	0.188 "	4.78 mm	0.236 in	6 mm	Nickel	Round Standoff	Threaded
Harwin Inc. R30-5000502	Female	Brass	M3x0.5	0.197 "	5 mm	0.1875 in	0.188 "	4.78 mm	0.197 in	5 mm	Nickel	Round Standoff	Threaded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	9600	$ 0.35
Newark	Each	1	$ 0.66

General part information

Round Standoff Threaded M3x0.5 Brass 0.630" (16.00mm)
