R30-5000902

Active

Harwin Inc.

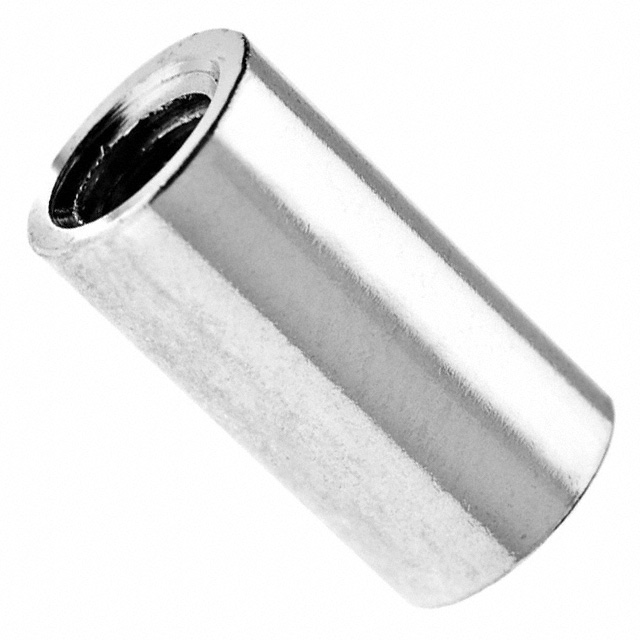

ROUND STANDOFF M3X0.5 BRASS 9MM

Search across all available documentation for this part.

Active

Harwin Inc.

ROUND STANDOFF M3X0.5 BRASS 9MM

Technical Specifications

Parameters and characteristics for this part

Part	Gender	Material	Screw, Thread Size	Length - Overall [x]	Length - Overall [x]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Between Board Height	Between Board Height	Plating	Type	Threaded/Unthreaded	Between Board Height [z]	Between Board Height [z]
Harwin Inc. R30-5000902	Female	Brass	M3x0.5	0.354 in	9 mm	0.1875 in	0.188 "	4.78 mm	0.354 in	9 mm	Nickel	Round Standoff	Threaded
Harwin Inc. R30-5001602	Female	Brass	M3x0.5	0.63 "	16 mm	0.1875 in	0.188 "	4.78 mm			Nickel	Round Standoff	Threaded	16 mm	0.63 in
Harwin Inc. R30-5002002	Female	Brass	M3x0.5	0.787 "	20 mm	0.1875 in	0.188 "	4.78 mm	0.787 in	20 mm	Nickel	Round Standoff	Threaded
Harwin Inc. R30-5001402	Female	Brass	M3x0.5	0.551 "	14 mm	0.1875 in	0.188 "	4.78 mm	0.551 in	14 mm	Nickel	Round Standoff	Threaded
Harwin Inc. R30-5000702	Female	Brass	M3x0.5	0.276 in	7 mm	0.1875 in	0.188 "	4.78 mm	0.276 in	7 mm	Nickel	Round Standoff	Threaded
Harwin Inc. R30-5001202	Female	Brass	M3x0.5	0.472 in	12 mm	0.1875 in	0.188 "	4.78 mm	0.472 in	12 mm	Nickel	Round Standoff	Threaded
Harwin Inc. R30-5001802	Female	Brass	M3x0.5	0.709 "	18 mm	0.1875 in	0.188 "	4.78 mm	0.709 in	18 mm	Nickel	Round Standoff	Threaded
Harwin Inc. R30-5001002	Female	Brass	M3x0.5	0.394 "	10 mm	0.1875 in	0.188 "	4.78 mm	0.394 in	10 mm	Nickel	Round Standoff	Threaded
Harwin Inc. R30-5000602	Female	Brass	M3x0.5	0.236 in	6 mm	0.1875 in	0.188 "	4.78 mm	0.236 in	6 mm	Nickel	Round Standoff	Threaded
Harwin Inc. R30-5000502	Female	Brass	M3x0.5	0.197 "	5 mm	0.1875 in	0.188 "	4.78 mm	0.197 in	5 mm	Nickel	Round Standoff	Threaded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10000	$ 0.32
Newark	Each	1	$ 0.66

General part information

Round Standoff Threaded M3x0.5 Brass 0.354" (9.00mm)
