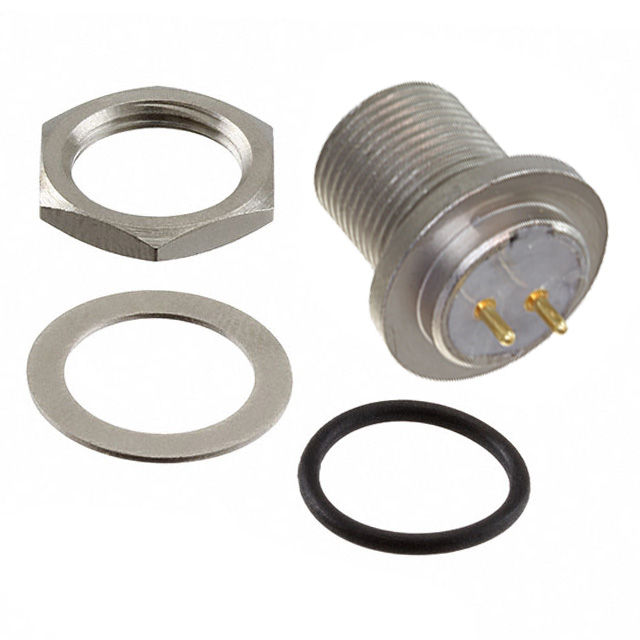

TS2P2M20-BPE

Active

Switchcraft Inc.

CONN RCPT MALE 2POS GOLD SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE 2POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	TS2P2M20-BPE

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	2
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Solder
Voltage Rating	125 VAC

Part	Contact Material	Connector Type	Shielding	Number of Positions	Termination	Ingress Protection	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Mounting Feature	Contact Finish - Mating	Primary Material	Orientation	Shell Material	Color	Shell Finish	Insert Material	Mounting Type
Switchcraft Inc. TS2P2M20	Copper Alloy	Male Pins Receptacle	Shielded	2	Crimp Solder Cup	IP66 IP67 IP68	Agriculture Audio General Medical Testing Equipment & Measurement	135 °C	-40 °C	125 VAC	Bulkhead - Rear Side Nut	Gold	Metal	Keyed	Copper Alloy	Silver	Electroless Nickel	Liquid Crystal Polymer (LCP)
Switchcraft Inc. TS2P2M20-BPE	Copper Alloy	Male Pins Receptacle	Shielded	2	Solder	IP66 IP67 IP68	Agriculture Audio General Medical Testing Equipment & Measurement	135 °C	-40 °C	125 VAC	Bulkhead - Front Side Nut	Gold	Metal	Keyed	Copper Alloy	Silver	Electroless Nickel	Liquid Crystal Polymer (LCP)	Panel Mount Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Male Pins Solder
