DML-08-A-H-T-A-TSMT-T/R

Active

Adam Tech

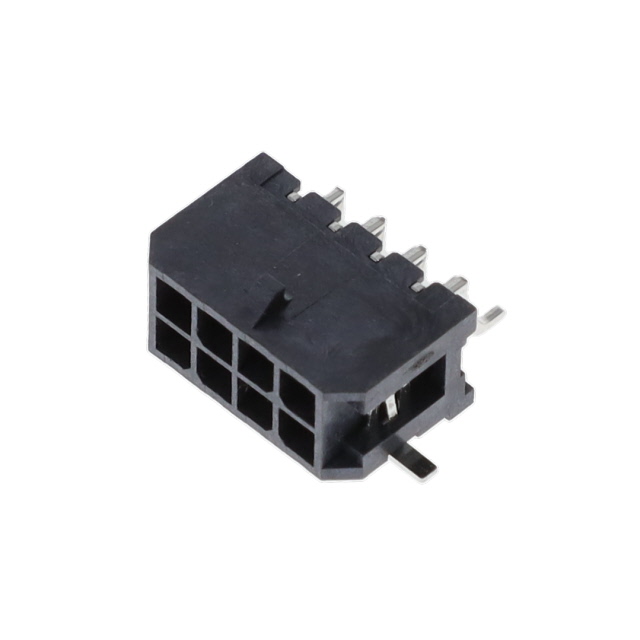

CONN HEADER SMD R/A 8POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Medical Industry Brochure +1

DML-08-A-H-T-A-TSMT-T/R

Active

Adam Tech

CONN HEADER SMD R/A 8POS 3MM

Deep-Dive with AI

DocumentsDatasheet Medical Industry Brochure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DML-08-A-H-T-A-TSMT-T/R

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Locking Ramp
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.289 "
Insulation Height	7.34 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Row Spacing - Mating	3 mm
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

DML-08 Series

Part	Style	Termination	Contact Length - Post	Contact Length - Post [x]	Contact Shape	Number of Positions Loaded	Voltage Rating	Insulation Height [z]	Insulation Height [z]	Insulation Material	Insulation Color	Fastening Type	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Connector Type	Contact Material	Contact Type	Number of Positions	Pitch - Mating	Pitch - Mating	Mounting Type	Number of Rows	Shrouding	Contact Finish - Post	Features	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Length - Post [x]
Adam Tech DML-08-A-V-T-A-BL	Board to Cable/Wire	Kinked Pin Solder	3.2 mm	0.126 in	Square	All	250 VAC	9.91 mm	0.39 in	Thermoplastic	Black	Locking Ramp	UL94 V-0	3 mm	0.118 in	Varies by Wire Gauge	Header	Brass	Male Pin	8	0.118 in	3 mm	Through Hole	2	Shrouded - 4 Wall	Tin
Adam Tech DML-08-A-H-T-A-TSMT-T/R	Board to Cable/Wire	Solder			Square	All	250 VAC			Thermoplastic	Natural	Locking Ramp	UL94 V-0	3 mm	0.118 in		Header	Brass	Male Pin	8	0.118 in	3 mm	Surface Mount Right Angle	2	Shrouded - 4 Wall	Tin	Solder Retention	5 A	-25 °C	85 °C	0.289 "	7.34 mm
