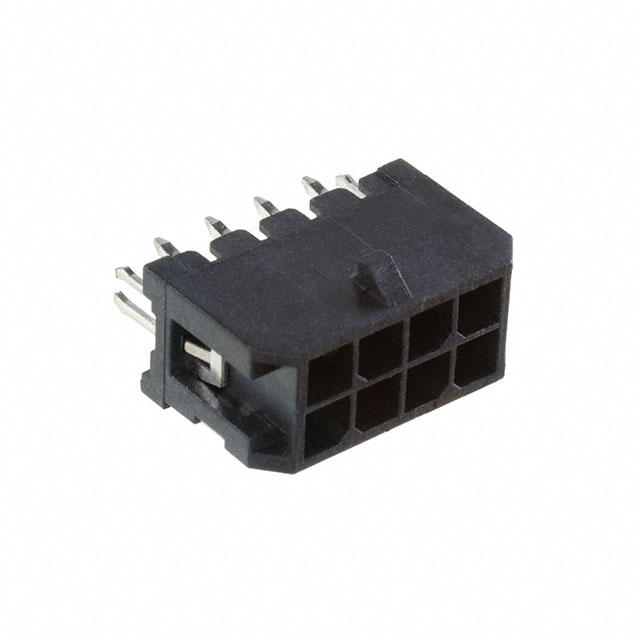

DML-08-A-V-T-A-BL

Active

Adam Tech

CONN HEADER VERT 8POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Medical Industry Brochure +1

DML-08-A-V-T-A-BL

Active

Adam Tech

CONN HEADER VERT 8POS 3MM

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Medical Industry Brochure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DML-08-A-V-T-A-BL

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height [z]	9.91 mm
Insulation Height [z]	0.39 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Row Spacing - Mating	3 mm
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	250 VAC

DML-08 Series

Part	Style	Termination	Contact Length - Post	Contact Length - Post [x]	Contact Shape	Number of Positions Loaded	Voltage Rating	Insulation Height [z]	Insulation Height [z]	Insulation Material	Insulation Color	Fastening Type	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Connector Type	Contact Material	Contact Type	Number of Positions	Pitch - Mating	Pitch - Mating	Mounting Type	Number of Rows	Shrouding	Contact Finish - Post	Features	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Length - Post [x]
Adam Tech DML-08-A-V-T-A-BL	Board to Cable/Wire	Kinked Pin Solder	3.2 mm	0.126 in	Square	All	250 VAC	9.91 mm	0.39 in	Thermoplastic	Black	Locking Ramp	UL94 V-0	3 mm	0.118 in	Varies by Wire Gauge	Header	Brass	Male Pin	8	0.118 in	3 mm	Through Hole	2	Shrouded - 4 Wall	Tin
Adam Tech DML-08-A-H-T-A-TSMT-T/R	Board to Cable/Wire	Solder			Square	All	250 VAC			Thermoplastic	Natural	Locking Ramp	UL94 V-0	3 mm	0.118 in		Header	Brass	Male Pin	8	0.118 in	3 mm	Surface Mount Right Angle	2	Shrouded - 4 Wall	Tin	Solder Retention	5 A	-25 °C	85 °C	0.289 "	7.34 mm
Adam Tech DML-08-A-H-T-A-SBL	Board to Cable/Wire	Solder	3.2 mm	0.126 in	Square	All	250 VDC			Thermoplastic	Black	Locking Ramp	UL94 V-0	3 mm	0.118 in	Varies by Wire Gauge	Header	Brass	Male Pin	8	0.118 in	3 mm	Through Hole Right Angle	2	Shrouded - 4 Wall	Tin					0.29 in	7.37 mm
Adam Tech DML-08-A-H-T-A	Board to Cable/Wire	Solder		0.125 in	Square	All	250 VDC			Thermoplastic	Black	Locking Ramp	UL94 V-0	3 mm	0.118 in	Varies by Wire Gauge	Header	Brass	Male Pin	8	0.118 in	3 mm	Through Hole Right Angle	2	Shrouded - 4 Wall	Tin					0.27 "	6.86 mm	3.18 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.39
		10	$ 1.06
		100	$ 0.82
		500	$ 0.73

Description

General part information

DML-08 Series

Connector Header Through Hole 8 position 0.118" (3.00mm)

Documents

Technical documentation and resources

ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Medical Industry Brochure

Datasheet
