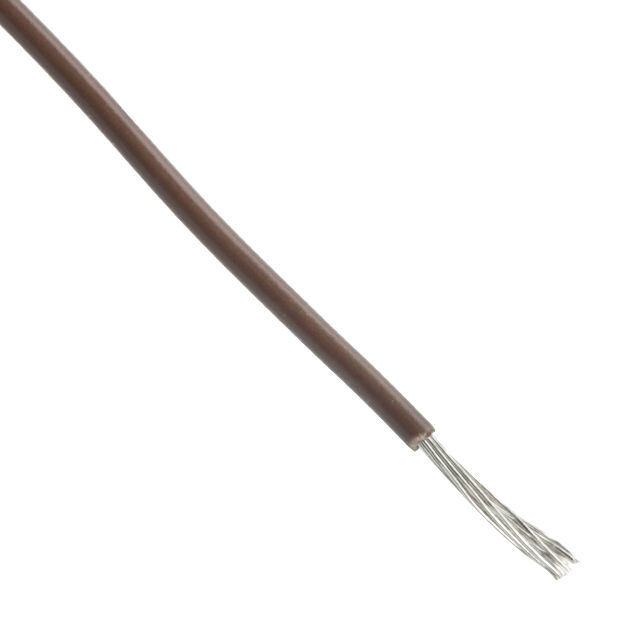

1569-24-1-0500-006-1-TS

Unknown

CnC Tech, LLC

HOOK-UP STRND 24AWG BRN 50'

Deep-Dive with AI

Search across all available documentation for this part.

Documents1569-22-1-0500-0XX-1-TS Datasheet Before 22/03 Datasheet

1569-24-1-0500-006-1-TS

Unknown

CnC Tech, LLC

HOOK-UP STRND 24AWG BRN 50'

Deep-Dive with AI

Documents1569-22-1-0500-0XX-1-TS Datasheet Before 22/03 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1569-24-1-0500-006-1-TS

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	11
Conductor Strand [diameter]	0.0063 in
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	1.45 mm
Jacket (Insulation) Diameter [diameter]	0.057 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.38 mm
Jacket (Insulation) Thickness	0.015 in
Jacket Color	Brown
Length	15.24 m
Length [x]	30.5 m
Length [x]	100 ft, 50 ft
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-10 °C
Voltage	300 V
Wire Gauge	24 AWG

1569-24 Series

Part	Jacket (Insulation) Material	Voltage	Conductor Material	Length	Length [x]	Wire Gauge	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Jacket Color	Conductor Strand [custom]	Conductor Strand [diameter]	Spool Size	Spool Size
CnC Tech, LLC 1569-24-1-0500-003-1-TS	Poly-Vinyl Chloride (PVC)	300 V	Copper Tinned	15.24 m	25 ft 50 ft 100 ft 500 '	24 AWG	7.62 m 30.5 m 152.4 m	0.38 mm	0.015 in	Hook-Up	105 ░C	-10 °C	1.4 mm	0.055 in	Oil Resistant	Yellow	11	0.0063 in
CnC Tech, LLC 1569-24-1-0500-006-1-TS	Poly-Vinyl Chloride (PVC)	300 V	Copper Tinned	15.24 m	50 ft 100 ft	24 AWG	30.5 m	0.38 mm	0.015 in	Hook-Up	105 ░C	-10 °C	1.45 mm	0.057 "	Oil Resistant	Brown	11	0.0063 in
CnC Tech, LLC 1569-24-1-0500-010-1-TS	Poly-Vinyl Chloride (PVC)	300 V	Copper Tinned		25 ft 500 '	24 AWG	7.62 m 152.4 m	0.38 mm	0.015 in	Hook-Up	105 ░C	-10 °C	1.4 mm 1.45 mm	0.055 in 0.057 "	Oil Resistant	Violet	11	0.0063 in
CnC Tech, LLC 1569-24-1-0500-008-1-TS	Poly-Vinyl Chloride (PVC)	300 V	Copper Tinned	15.24 m	25 ft 50 ft 100 ft	24 AWG	7.62 m 30.5 m	0.38 mm	0.015 in	Hook-Up	105 ░C	-10 °C	1.4 mm	0.055 in	Oil Resistant	Orange	11	0.0063 in
CnC Tech, LLC 1569-24-1-0500-011-1-TS	Poly-Vinyl Chloride (PVC)	300 V	Copper Tinned	15.24 m	25 ft 50 ft 100 ft 500 '	24 AWG	7.62 m 30.5 m 152.4 m	0.38 mm	0.015 in	Hook-Up	105 ░C	-10 °C	1.4 mm 1.45 mm	0.055 in 0.057 "	Oil Resistant	Green Yellow	11	0.0063 in	500 '	152.4 m
CnC Tech, LLC 1569-24-1-0500-007-1-TS	Poly-Vinyl Chloride (PVC)	300 V	Copper Tinned	15.24 m	50 ft 100 ft	24 AWG	30.5 m	0.38 mm	0.015 in	Hook-Up	105 ░C	-10 °C	1.4 mm	0.055 in	Oil Resistant	Green	11	0.0063 in
CnC Tech, LLC 1569-24-1-0500-005-1-TS	Poly-Vinyl Chloride (PVC)	300 V	Copper Tinned	15.24 m	25 ft 50 ft 100 ft	24 AWG	7.62 m 30.5 m	0.38 mm	0.015 in	Hook-Up	105 ░C	-10 °C	1.4 mm	0.055 in	Oil Resistant	Blue	11	0.0063 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 18.45
		1	$ 9.33
		3	$ 17.28
		5	$ 16.48
		10	$ 15.67
		25	$ 14.72
		50	$ 13.99
		100	$ 13.33
		500	$ 11.86

Description

General part information

1569-24 Series

24 AWG Hook-Up Wire 11/0.0063" Brown 300V 50.00' (15.24m)

Documents

Technical documentation and resources

1569-22-1-0500-0XX-1-TS Datasheet Before 22/03

Datasheet
