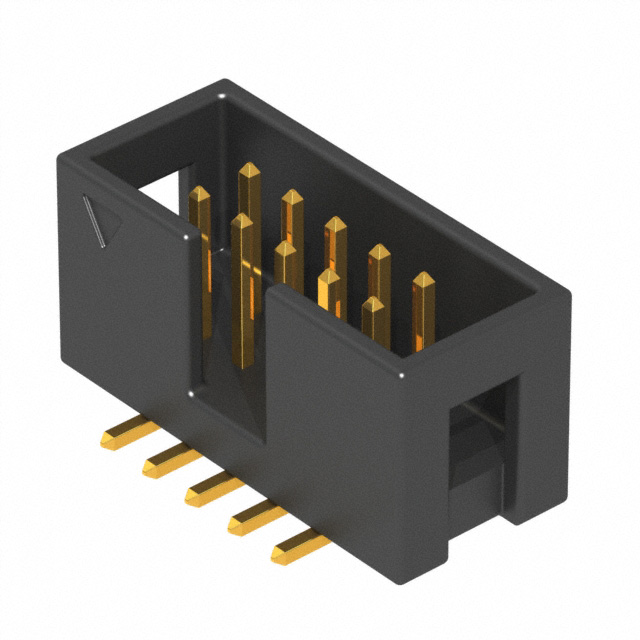

3020-10-0300-00

Active

CnC Tech, LLC

CONN SHROUDED HEADER (4 SIDES) HDR 10 POS 2.54MM SOLDER ST TOP ENTRY SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSoldering Guide 3X10,3X20,3221 Series Datasheet +2

3020-10-0300-00

Active

CnC Tech, LLC

CONN SHROUDED HEADER (4 SIDES) HDR 10 POS 2.54MM SOLDER ST TOP ENTRY SMD

Deep-Dive with AI

DocumentsSoldering Guide 3X10,3X20,3221 Series Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3020-10-0300-00

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	9 mm
Insulation Height	0.354 in
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

3020-10 Series

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Contact Finish Thickness - Post	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Style	Number of Positions Loaded	Number of Positions	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Shrouding	Current Rating (Amps)	Insulation Color	Contact Type	Connector Type	Contact Material	Features	Fastening Type	Material Flammability Rating	Termination	Insulation Height	Insulation Height	Number of Rows	Contact Finish - Post	Contact Shape	Voltage Rating	Contact Length - Post	Contact Length - Post	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
CnC Tech, LLC 3020-10-0300-00-TR	2.54 mm	0.1 in	Surface Mount	Flash	Nylon 9T Polyamide (PA9T)	-40 °C	105 ░C	Board to Cable/Wire	All	10	Flash	0.1 in	2.54 mm	Gold	Shrouded - 4 Wall	3 A	Black	Male Pin	Header	Copper Alloy	Keying Slot Pick and Place	Push-Pull	UL94 V-0	Solder	9 mm	0.354 in	2	Gold	Square
CnC Tech, LLC 3020-10-0100-00	2.54 mm	0.1 in	Through Hole	Flash	Nylon 9T Polyamide (PA9T)	-40 °C	105 ░C	Board to Cable/Wire	All	10	Flash	0.1 in	2.54 mm	Gold	Shrouded - 4 Wall	3 A	Black	Male Pin	Header	Brass	Keying Slot	Push-Pull	UL94 V-0	Solder	9 mm	0.354 in	2	Gold	Square	250 VAC	0.118 in	3 mm
CnC Tech, LLC 3020-10-0300-00	2.54 mm	0.1 in	Surface Mount	Flash	Nylon 9T Polyamide (PA9T)	-40 °C	105 ░C	Board to Cable/Wire	All	10	Flash	0.1 in	2.54 mm	Gold	Shrouded - 4 Wall	3 A	Black	Male Pin	Header	Brass	Keying Slot	Push-Pull	UL94 V-0	Solder	9 mm	0.354 in	2	Gold	Square
CnC Tech, LLC 3020-10-0200-02	2.54 mm	0.1 in	Through Hole		Polybutylene Terephthalate (PBT) Polyester	-40 °C	105 ░C	Board to Cable/Wire	All	10		0.1 in	2.54 mm	Gold	Shrouded - 4 Wall	3 A		Male Pin	Header	Brass	Keying Slot	Push-Pull	UL94 V-0	Solder			2		Square		0.118 in	3 mm	0.35 in	8.89 mm	30 Áin	0.76 Ám
CnC Tech, LLC 3020-10-0100-02	2.54 mm	0.1 in	Through Hole Right Angle		Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	Board to Cable/Wire	All	10		0.1 in	2.54 mm	Gold	Shrouded - 4 Wall	3 A		Male Pin	Header	Brass		Push-Pull	UL94 V-0	Solder			2		Square		0.118 in	3 mm	0.35 in	8.89 mm	30 Áin	0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.83
		10	$ 0.63
		80	$ 0.50
		440	$ 0.41
		945	$ 0.38
		4900	$ 0.32
		10000	$ 0.30

Description

General part information

3020-10 Series

Connector Header Surface Mount 10 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Soldering Guide 3X10,3X20,3221 Series

Datasheet

IDC Header Mating Guide

Datasheet

IDC, Flat Ribbon Cable Mating Chart

Datasheet
