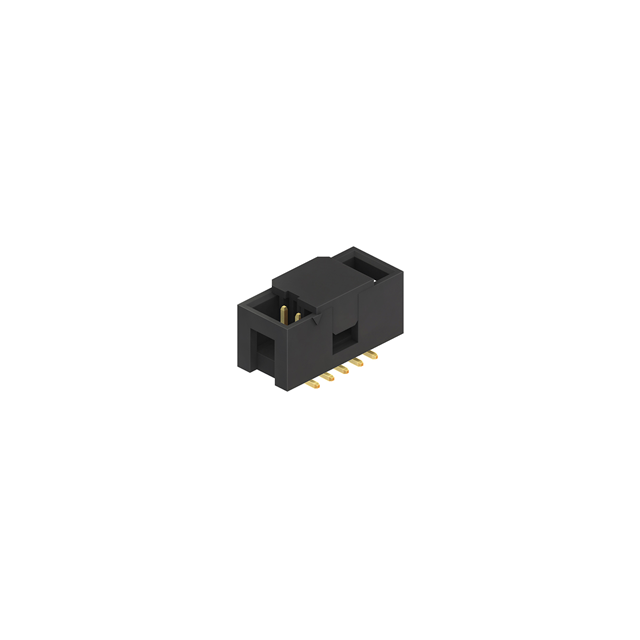

3020-10-0300-00-TR

Active

CnC Tech, LLC

CONN HEADER SMD 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSoldering Guide 3X10,3X20,3221 Series Datasheet

3020-10-0300-00-TR

Active

CnC Tech, LLC

CONN HEADER SMD 10POS 2.54MM

Deep-Dive with AI

DocumentsSoldering Guide 3X10,3X20,3221 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3020-10-0300-00-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Pick and Place, Keying Slot
Insulation Color	Black
Insulation Height	9 mm
Insulation Height	0.354 in
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

3020-10 Series

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Contact Finish Thickness - Post	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Style	Number of Positions Loaded	Number of Positions	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Shrouding	Current Rating (Amps)	Insulation Color	Contact Type	Connector Type	Contact Material	Features	Fastening Type	Material Flammability Rating	Termination	Insulation Height	Insulation Height	Number of Rows	Contact Finish - Post	Contact Shape	Voltage Rating	Contact Length - Post	Contact Length - Post	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
CnC Tech, LLC 3020-10-0300-00-TR	2.54 mm	0.1 in	Surface Mount	Flash	Nylon 9T Polyamide (PA9T)	-40 °C	105 ░C	Board to Cable/Wire	All	10	Flash	0.1 in	2.54 mm	Gold	Shrouded - 4 Wall	3 A	Black	Male Pin	Header	Copper Alloy	Keying Slot Pick and Place	Push-Pull	UL94 V-0	Solder	9 mm	0.354 in	2	Gold	Square
CnC Tech, LLC 3020-10-0100-00	2.54 mm	0.1 in	Through Hole	Flash	Nylon 9T Polyamide (PA9T)	-40 °C	105 ░C	Board to Cable/Wire	All	10	Flash	0.1 in	2.54 mm	Gold	Shrouded - 4 Wall	3 A	Black	Male Pin	Header	Brass	Keying Slot	Push-Pull	UL94 V-0	Solder	9 mm	0.354 in	2	Gold	Square	250 VAC	0.118 in	3 mm
CnC Tech, LLC 3020-10-0300-00	2.54 mm	0.1 in	Surface Mount	Flash	Nylon 9T Polyamide (PA9T)	-40 °C	105 ░C	Board to Cable/Wire	All	10	Flash	0.1 in	2.54 mm	Gold	Shrouded - 4 Wall	3 A	Black	Male Pin	Header	Brass	Keying Slot	Push-Pull	UL94 V-0	Solder	9 mm	0.354 in	2	Gold	Square
CnC Tech, LLC 3020-10-0200-02	2.54 mm	0.1 in	Through Hole		Polybutylene Terephthalate (PBT) Polyester	-40 °C	105 ░C	Board to Cable/Wire	All	10		0.1 in	2.54 mm	Gold	Shrouded - 4 Wall	3 A		Male Pin	Header	Brass	Keying Slot	Push-Pull	UL94 V-0	Solder			2		Square		0.118 in	3 mm	0.35 in	8.89 mm	30 Áin	0.76 Ám
CnC Tech, LLC 3020-10-0100-02	2.54 mm	0.1 in	Through Hole Right Angle		Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	Board to Cable/Wire	All	10		0.1 in	2.54 mm	Gold	Shrouded - 4 Wall	3 A		Male Pin	Header	Brass		Push-Pull	UL94 V-0	Solder			2		Square		0.118 in	3 mm	0.35 in	8.89 mm	30 Áin	0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.00
		10	$ 0.84
		100	$ 0.76
	Digi-Reel®	1	$ 1.00
		10	$ 0.84
		100	$ 0.76
	Tape & Reel (TR)	300	$ 0.73
		600	$ 0.65
		900	$ 0.64
		1500	$ 0.55
		3000	$ 0.53
		7500	$ 0.51
		15000	$ 0.47
