T120R0UVC2

Active

HELLERMANNTYTON

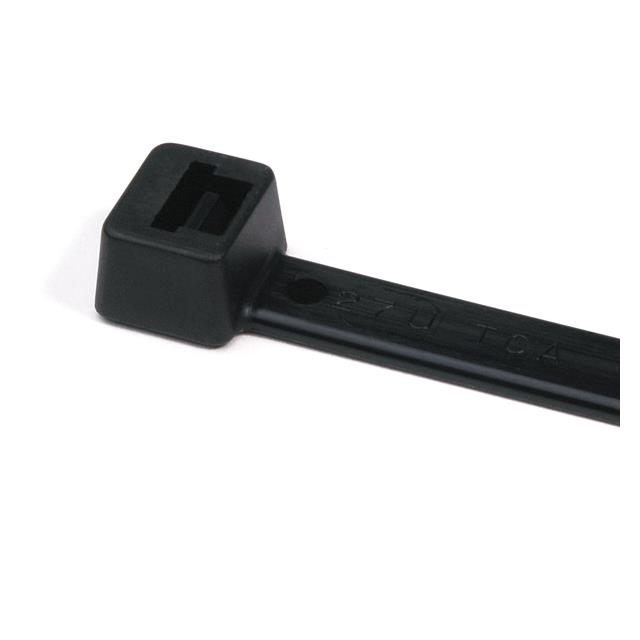

CABLE TIE, NYLON 6.6 UV RESISTANT (POLYAMIDE 6.6 UV RESISTANT), BLACK, 387 MM, 7.6 MM, 105 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Materials Guide for Bundling & Securing

T120R0UVC2

Active

HELLERMANNTYTON

CABLE TIE, NYLON 6.6 UV RESISTANT (POLYAMIDE 6.6 UV RESISTANT), BLACK, 387 MM, 7.6 MM, 105 MM

Deep-Dive with AI

DocumentsDatasheet Materials Guide for Bundling & Securing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T120R0UVC2

Bundle Diameter [diameter]	4.13 in
Bundle Diameter [diameter]	104.9 mm
Color	Black
Features	UV Resistant
Length - Actual [x]	1.27 ft
Length - Actual [x]	387 mm
Length - Approximate	15.25 in
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Tensile Strength	54.43 kg
Tensile Strength	120 lbs
Width	7.62 mm
Width [x]	0.3 "
Wire/Cable Tie Type	Standard, Locking

T120R Series

Part	Width [y]	Width [y]	Color	Tensile Strength	Tensile Strength	Mounting Type	Features	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Length - Approximate	Wire/Cable Tie Type	Material	Length - Actual [x]	Length - Actual [x]	Width [x]	Width
HELLERMANNTYTON T120R9C2	7.59 mm	0.299 in	Natural	54.43 kg	120 lbs	Free Hanging (In-Line)	Halogen Free	4.1 in	104.14 mm	15.25 in	Locking Standard	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm
HELLERMANNTYTON T120R7H4	7.59 mm	0.299 in	Purple	54.43 kg	120 lbs	Free Hanging (In-Line)	Halogen Free	4.1 in	104.14 mm	15.25 in	Locking Standard	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm
HELLERMANNTYTON T120R6H4	7.59 mm	0.299 in	Blue	54.43 kg	120 lbs	Free Hanging (In-Line)	Halogen Free	4.1 in	104.14 mm	15.25 in	Locking Standard	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm
HELLERMANNTYTON T120R0HSC2			Black	54.43 kg	120 lbs	Free Hanging (In-Line)	Heat Stabilized	4.13 in	104.9 mm	15.25 in	Locking Standard	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm	0.3 "	7.62 mm
HELLERMANNTYTON T120R2H4	7.59 mm	0.299 in	Red	54.43 kg	120 lbs	Free Hanging (In-Line)	Halogen Free	4.1 in	104.14 mm	15.25 in	Locking Standard	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm
HELLERMANNTYTON T120R0UVC2			Black	54.43 kg	120 lbs	Free Hanging (In-Line)	UV Resistant	4.13 in	104.9 mm	15.25 in	Locking Standard	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm	0.3 "	7.62 mm
HELLERMANNTYTON T120R0K2			Black	54.43 kg	120 lbs	Free Hanging (In-Line)		4.13 in	104.9 mm	15.25 in	Locking Standard	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm	0.3 "	7.62 mm
HELLERMANNTYTON T120R5H4	7.59 mm	0.299 in	Green	54.43 kg	120 lbs	Free Hanging (In-Line)	Halogen Free	4.1 in	104.14 mm	15.25 in	Locking Standard	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm
HELLERMANNTYTON T120R3H4	7.59 mm	0.299 in		54.43 kg	120 lbs	Free Hanging (In-Line)	Halogen Free	4.1 in	104.14 mm	15.25 in	Locking Standard	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm
HELLERMANNTYTON T120R9K2			Natural	54.43 kg	120 lbs	Free Hanging (In-Line)		4.13 in	104.9 mm	15.25 in	Locking Standard	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm	0.3 "	7.62 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 2.33
Newark	Pack of 100	1	$ 218.91
		5	$ 200.95
		10	$ 170.64
		25	$ 160.54
		50	$ 151.56
		100	$ 148.19
