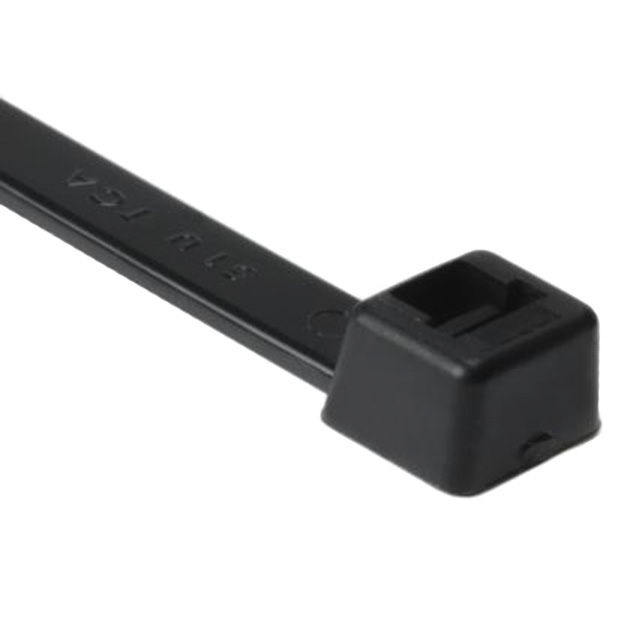

T120R0HSC2

Obsolete

HELLERMANNTYTON

CBL TIE LOCKING BLK 120LBS 1.27'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T120R0HSC2

Obsolete

HELLERMANNTYTON

CBL TIE LOCKING BLK 120LBS 1.27'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T120R0HSC2

Bundle Diameter [diameter]	4.13 in
Bundle Diameter [diameter]	104.9 mm
Color	Black
Features	Heat Stabilized
Length - Actual [x]	1.27 ft
Length - Actual [x]	387 mm
Length - Approximate	15.25 in
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Tensile Strength	54.43 kg
Tensile Strength	120 lbs
Width	7.62 mm
Width [x]	0.3 "
Wire/Cable Tie Type	Standard, Locking

T120R Series

Part	Width [y]	Width [y]	Color	Tensile Strength	Tensile Strength	Mounting Type	Features	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Length - Approximate	Wire/Cable Tie Type	Material	Length - Actual [x]	Length - Actual [x]	Width [x]	Width
HELLERMANNTYTON T120R9C2	7.59 mm	0.299 in	Natural	54.43 kg	120 lbs	Free Hanging (In-Line)	Halogen Free	4.1 in	104.14 mm	15.25 in	Locking Standard	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm
HELLERMANNTYTON T120R7H4	7.59 mm	0.299 in	Purple	54.43 kg	120 lbs	Free Hanging (In-Line)	Halogen Free	4.1 in	104.14 mm	15.25 in	Locking Standard	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm
HELLERMANNTYTON T120R6H4	7.59 mm	0.299 in	Blue	54.43 kg	120 lbs	Free Hanging (In-Line)	Halogen Free	4.1 in	104.14 mm	15.25 in	Locking Standard	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm
HELLERMANNTYTON T120R0HSC2			Black	54.43 kg	120 lbs	Free Hanging (In-Line)	Heat Stabilized	4.13 in	104.9 mm	15.25 in	Locking Standard	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm	0.3 "	7.62 mm
HELLERMANNTYTON T120R2H4	7.59 mm	0.299 in	Red	54.43 kg	120 lbs	Free Hanging (In-Line)	Halogen Free	4.1 in	104.14 mm	15.25 in	Locking Standard	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm
HELLERMANNTYTON T120R0UVC2			Black	54.43 kg	120 lbs	Free Hanging (In-Line)	UV Resistant	4.13 in	104.9 mm	15.25 in	Locking Standard	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm	0.3 "	7.62 mm
HELLERMANNTYTON T120R0K2			Black	54.43 kg	120 lbs	Free Hanging (In-Line)		4.13 in	104.9 mm	15.25 in	Locking Standard	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm	0.3 "	7.62 mm
HELLERMANNTYTON T120R5H4	7.59 mm	0.299 in	Green	54.43 kg	120 lbs	Free Hanging (In-Line)	Halogen Free	4.1 in	104.14 mm	15.25 in	Locking Standard	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm
HELLERMANNTYTON T120R3H4	7.59 mm	0.299 in		54.43 kg	120 lbs	Free Hanging (In-Line)	Halogen Free	4.1 in	104.14 mm	15.25 in	Locking Standard	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm
HELLERMANNTYTON T120R9K2			Natural	54.43 kg	120 lbs	Free Hanging (In-Line)		4.13 in	104.9 mm	15.25 in	Locking Standard	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm	0.3 "	7.62 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

T120R Series

Standard, Locking Black 4.13" (104.90mm) 0.300" (7.62mm) 120 lbs (54.43 kg)

Documents

Technical documentation and resources
