R222680710

Active

Radiall USA, Inc.

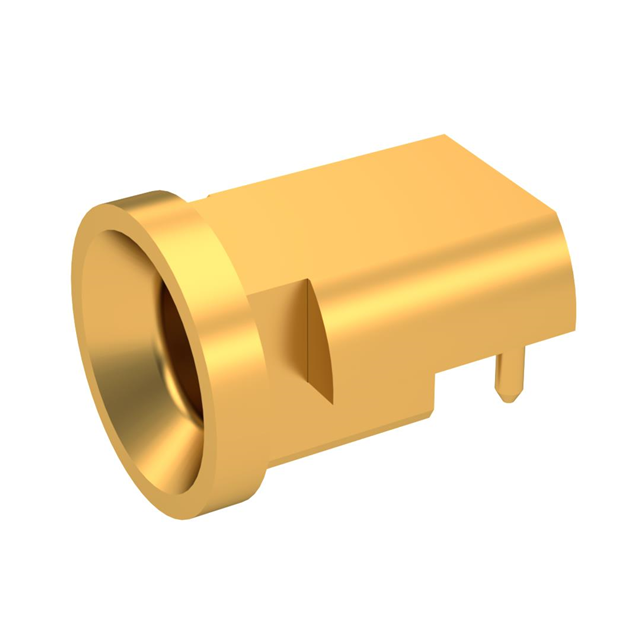

SMP / STRAIGHT MALE FOR PCB SOLD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMP / STRAIGHT MALE FOR PCB SOLD

Technical Specifications

Parameters and characteristics for this part

Specification	R222680710

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Male Pin, Receptacle
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Catcher's Mitt
Frequency - Max [Max]	40 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Board Edge, Cutout, Through Hole, Right Angle, Surface Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Features	Shield Termination	Contact Termination	Mating Cycles	Housing Color	Impedance	Center Contact Material	Frequency - Max [Max]	Mounting Type	Fastening Type	Connector Type	Body Material	Voltage Rating	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Center Contact Plating	Dielectric Material
Radiall USA, Inc. R222680700	Smooth Bore	Solder	Solder	1000	Gold Silver	50 Ohms	Beryllium Copper	12 GHz	Through Hole Right Angle	Snap-On	Male Pin Receptacle	Brass Stainless Steel	335 V	Gold	-65 ░C	165 °C	1	Gold
Radiall USA, Inc. R222680000	Full Detent	Solder	Solder		Gold Silver	50 Ohms	Beryllium Copper	12 GHz	Through Hole Right Angle	Snap-On	Male Pin Receptacle	Brass Stainless Steel	335 V	Gold	-65 ░C	165 °C	1	Gold
Radiall USA, Inc. R222680710	Catcher's Mitt	Solder	Solder		Gold	50 Ohms	Beryllium Copper	40 GHz	Board Edge Cutout Surface Mount Through Hole Right Angle	Snap-On	Male Pin Receptacle	Stainless Steel	335 V	Gold	-65 ░C	165 °C	1	Gold	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R222680000W	Full Detent	Solder	Solder		Gold Silver	50 Ohms	Beryllium Copper	12 GHz	Through Hole Right Angle	Snap-On	Male Pin Receptacle	Brass Stainless Steel	335 V	Gold	-65 ░C	165 °C	1	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 22.94

General part information

SMP Connector Receptacle, Male Pin 50 Ohms Board Edge, Cutout; Surface Mount; Through Hole, Right Angle Solder
