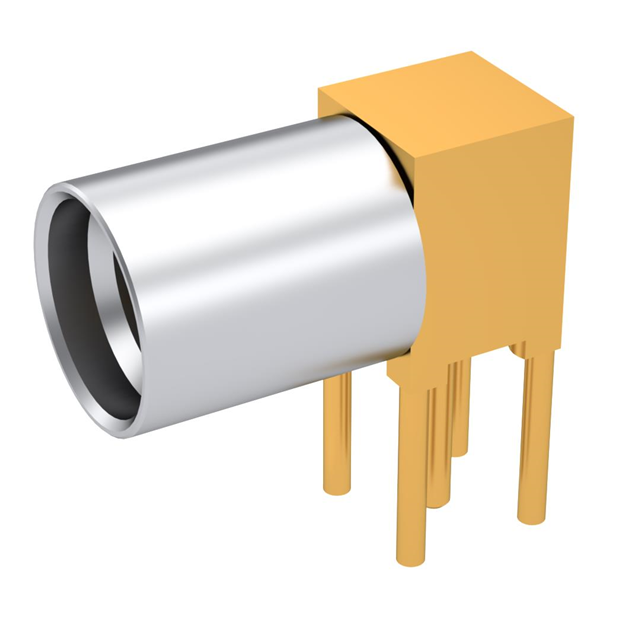

R222680700

Active

Radiall USA, Inc.

SMP / RIGHT ANGLE RECEPTACLE SOL

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMP / RIGHT ANGLE RECEPTACLE SOL

Technical Specifications

Parameters and characteristics for this part

Part	Features	Shield Termination	Contact Termination	Mating Cycles	Housing Color	Impedance	Center Contact Material	Frequency - Max [Max]	Mounting Type	Fastening Type	Connector Type	Body Material	Voltage Rating	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Center Contact Plating	Dielectric Material
Radiall USA, Inc. R222680700	Smooth Bore	Solder	Solder	1000	Gold Silver	50 Ohms	Beryllium Copper	12 GHz	Through Hole Right Angle	Snap-On	Male Pin Receptacle	Brass Stainless Steel	335 V	Gold	-65 ░C	165 °C	1	Gold
Radiall USA, Inc. R222680000	Full Detent	Solder	Solder		Gold Silver	50 Ohms	Beryllium Copper	12 GHz	Through Hole Right Angle	Snap-On	Male Pin Receptacle	Brass Stainless Steel	335 V	Gold	-65 ░C	165 °C	1	Gold
Radiall USA, Inc. R222680710	Catcher's Mitt	Solder	Solder		Gold	50 Ohms	Beryllium Copper	40 GHz	Board Edge Cutout Surface Mount Through Hole Right Angle	Snap-On	Male Pin Receptacle	Stainless Steel	335 V	Gold	-65 ░C	165 °C	1	Gold	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R222680000W	Full Detent	Solder	Solder		Gold Silver	50 Ohms	Beryllium Copper	12 GHz	Through Hole Right Angle	Snap-On	Male Pin Receptacle	Brass Stainless Steel	335 V	Gold	-65 ░C	165 °C	1	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 27.61

General part information

SMP Connector Receptacle, Male Pin 50 Ohms Through Hole, Right Angle Solder

Technical documentation and resources

No documents available
