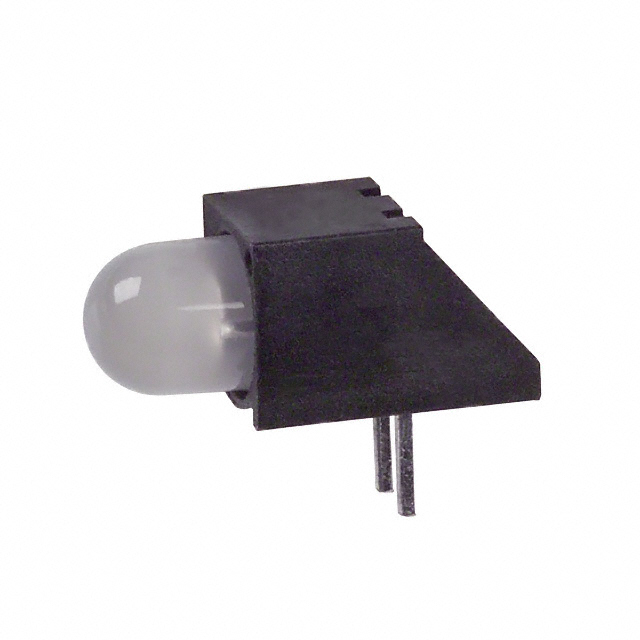

5503007F
ActiveDIALIGHT
LED CBI 5MM GREEN/RED RA PC MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsCBI Through Hole Selector Guide
5503007F
ActiveDIALIGHT
LED CBI 5MM GREEN/RED RA PC MNT
Deep-Dive with AI
DocumentsCBI Through Hole Selector Guide
Technical Specifications
Parameters and characteristics for this part
| Specification | 5503007F |
|---|---|
| Color | Red, Green |
| Configuration | Single |
| Lens Type | Diffused |
| Millicandela Rating | 40 mcd, 90 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 60 ° |
| Voltage Rating | 1.8 V, 2.1 V |
| Wavelength - Peak [custom] | 660 nm, 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.40 | |
| 10 | $ 1.57 | |||
| 100 | $ 1.14 | |||
| 500 | $ 0.97 | |||
| 1000 | $ 0.92 | |||
| 2000 | $ 0.88 | |||
| 5000 | $ 0.83 | |||
| 10000 | $ 0.81 | |||
Description
General part information
5503007 Series
LED Circuit Board Indicator LED Circuit Board Indicator Single Green, Red Diffused 2.1V Green, 1.8V Red 20mA Through Hole, Right Angle
