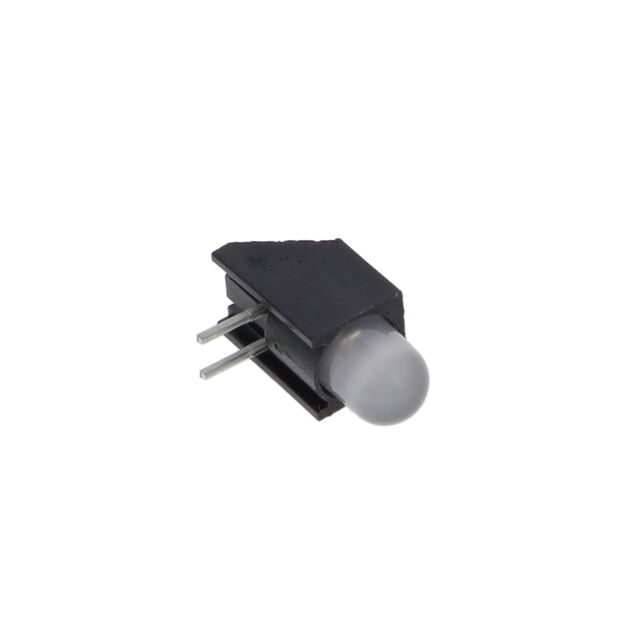

5503007010F

Active

DIALIGHT

LED CBI 5MM GRN/RED DIFF RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5503007010F

Active

DIALIGHT

LED CBI 5MM GRN/RED DIFF RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5503007010F

Color	Red, Green
Configuration	Single
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Type	Diffused
Millicandela Rating	40 mcd, 90 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	60 °
Voltage Rating	1.8 V, 2.1 V
Wavelength - Peak [custom]	660 nm, 565 nm

5503007 Series

Part	Viewing Angle	Lens Style	Lens Size	Lens Size	Voltage Rating	Mounting Type	Millicandela Rating	Lens Type	Configuration	Wavelength - Peak [custom]	Color
DIALIGHT 5503007010F	60 °	Round with Domed Top	T-1 3/4	5 mm	1.8 V 2.1 V	Through Hole Right Angle	40 mcd 90 mcd	Diffused	Single	565 nm 660 nm	Green Red
DIALIGHT 5503007F	60 °				1.8 V 2.1 V	Through Hole Right Angle	40 mcd 90 mcd	Diffused	Single	565 nm 660 nm	Green Red
DIALIGHT 5503007002F	60 °	Round with Domed Top	T-1 3/4	5 mm	1.8 V 2.1 V	Through Hole Right Angle	40 mcd 90 mcd	Diffused	2 Wide	565 nm 660 nm	Green Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.66
		10	$ 1.75
		100	$ 1.28
		500	$ 1.10
		1000	$ 1.04
		2000	$ 0.99
		5000	$ 0.95
		10000	$ 0.92

Description

General part information

5503007 Series

LED Circuit Board Indicator LED Circuit Board Indicator Single Green, Red Diffused 2.1V Green, 1.8V Red 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
