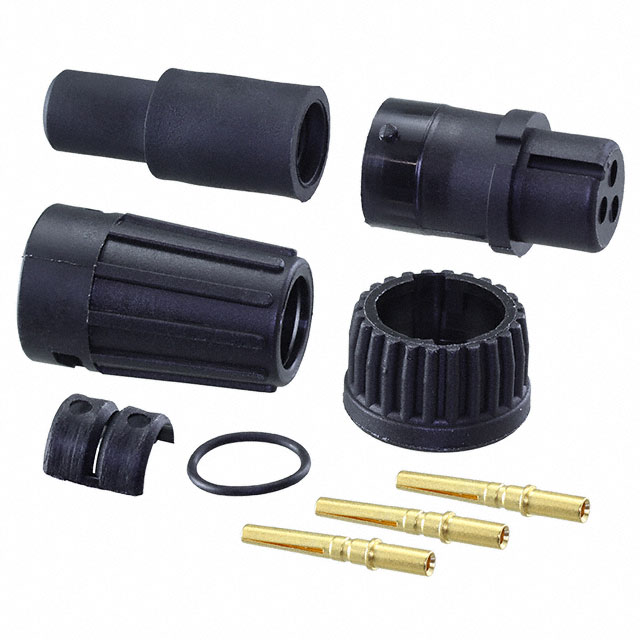

6380-3SG-519

Active

Conxall/Switchcraft

CONN PLUG FMALE 3POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6380-3SG-519

Active

Conxall/Switchcraft

CONN PLUG FMALE 3POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6380-3SG-519

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	0.21 in
Cable Opening [Max] [diameter]	5.33 mm
Cable Opening [Min] [diameter]	0.19 in
Cable Opening [Min] [diameter]	4.83 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

6380-3SG Series

Part	Connector Type	Applications	Mounting Type	Shielding	Termination	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Voltage Rating	Orientation	Current Rating (Amps)	Contact Material	Contact Finish - Mating	Fastening Type	Primary Material	Color	Features	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
Conxall/Switchcraft 6380-3SG-3DC	Female Sockets Plug	Automotive Communication Systems Instrumentation	Free Hanging (In-Line)	Unshielded	Crimp	Nylon Polyamide (PA)	-40 °C	115 °C	Weathertight	600 V	Keyed	Varies by Wire Gauge	Brass	Gold	Bayonet Lock	Plastic	Black	Backshell
Conxall/Switchcraft 6380-3SG-513	Female Sockets Plug	Automotive Communication Systems Instrumentation	Free Hanging (In-Line)	Unshielded	Crimp	Nylon Polyamide (PA)	-40 °C	115 °C	Weathertight	600 V	Keyed	Varies by Wire Gauge	Brass	Gold	Bayonet Lock	Plastic	Black	Backshell	0.13 in 0.15 in	3.3 mm 3.81 mm
Conxall/Switchcraft 6380-3SG-519	Female Sockets Plug	Automotive Communication Systems Instrumentation	Free Hanging (In-Line)	Unshielded	Crimp	Nylon Polyamide (PA)	-40 °C	115 °C	Weathertight	600 V	Keyed	Varies by Wire Gauge	Brass	Gold	Bayonet Lock	Plastic	Black	Backshell			0.21 in	0.19 in	4.83 mm	5.33 mm
Conxall/Switchcraft 6380-3SG-516	Female Sockets Plug	Automotive Communication Systems Instrumentation	Free Hanging (In-Line)	Unshielded	Crimp	Nylon Polyamide (PA)	-40 °C	115 °C	Weathertight	600 V	Keyed	Varies by Wire Gauge	Brass	Gold	Bayonet Lock	Plastic	Black	Backshell							0.16 in	0.18 in	4.06 mm	4.57 mm
Conxall/Switchcraft 6380-3SG-522	Female Sockets Plug	Automotive Communication Systems Instrumentation	Free Hanging (In-Line)	Unshielded	Crimp	Nylon Polyamide (PA)	-40 °C	115 °C	Weathertight	600 V	Keyed	Varies by Wire Gauge	Brass	Gold	Bayonet Lock	Plastic	Black	Backshell			0.25 in	0.22 in	5.59 mm	6.35 mm
Conxall/Switchcraft 6380-3SG-311	Female Sockets Plug	Automotive Communication Systems Instrumentation	Free Hanging (In-Line)	Unshielded	Crimp	Nylon Polyamide (PA)	-40 °C	115 °C	Weathertight	600 V	Keyed	Varies by Wire Gauge	Brass	Gold	Bayonet Lock	Plastic	Black	Backshell											2.29 mm	0.09 in 0.14 in	3.56 mm
Conxall/Switchcraft 6380-3SG-315	Female Sockets Plug	Automotive Communication Systems Instrumentation	Free Hanging (In-Line)	Unshielded	Crimp	Nylon Polyamide (PA)	-40 °C	115 °C	Weathertight	600 V	Keyed	Varies by Wire Gauge	Brass	Gold	Bayonet Lock	Plastic	Black	Backshell	0.15 in 0.17 in	3.81 mm 4.32 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.76
		10	$ 5.19
		25	$ 4.89
		50	$ 4.76
		100	$ 4.64
		300	$ 4.41

Description

General part information

6380-3SG Series

3 Position Circular Connector Plug, Female Sockets Crimp
