6380-3SG-3DC

Active

Conxall/Switchcraft

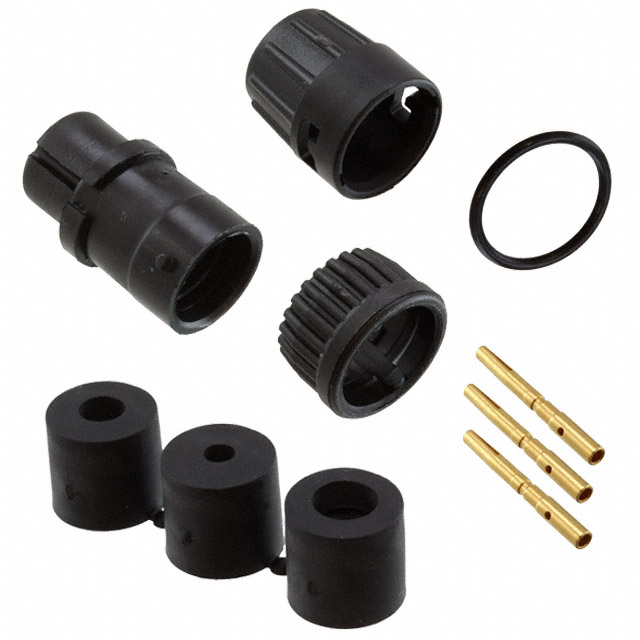

CONN PLUG FMALE 3POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6380-3SG-3DC

Active

Conxall/Switchcraft

CONN PLUG FMALE 3POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6380-3SG-3DC

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

6380-3SG Series

Part	Connector Type	Applications	Mounting Type	Shielding	Termination	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Voltage Rating	Orientation	Current Rating (Amps)	Contact Material	Contact Finish - Mating	Fastening Type	Primary Material	Color	Features	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
Conxall/Switchcraft 6380-3SG-3DC	Female Sockets Plug	Automotive Communication Systems Instrumentation	Free Hanging (In-Line)	Unshielded	Crimp	Nylon Polyamide (PA)	-40 °C	115 °C	Weathertight	600 V	Keyed	Varies by Wire Gauge	Brass	Gold	Bayonet Lock	Plastic	Black	Backshell
Conxall/Switchcraft 6380-3SG-513	Female Sockets Plug	Automotive Communication Systems Instrumentation	Free Hanging (In-Line)	Unshielded	Crimp	Nylon Polyamide (PA)	-40 °C	115 °C	Weathertight	600 V	Keyed	Varies by Wire Gauge	Brass	Gold	Bayonet Lock	Plastic	Black	Backshell	0.13 in 0.15 in	3.3 mm 3.81 mm
Conxall/Switchcraft 6380-3SG-519	Female Sockets Plug	Automotive Communication Systems Instrumentation	Free Hanging (In-Line)	Unshielded	Crimp	Nylon Polyamide (PA)	-40 °C	115 °C	Weathertight	600 V	Keyed	Varies by Wire Gauge	Brass	Gold	Bayonet Lock	Plastic	Black	Backshell			0.21 in	0.19 in	4.83 mm	5.33 mm
Conxall/Switchcraft 6380-3SG-516	Female Sockets Plug	Automotive Communication Systems Instrumentation	Free Hanging (In-Line)	Unshielded	Crimp	Nylon Polyamide (PA)	-40 °C	115 °C	Weathertight	600 V	Keyed	Varies by Wire Gauge	Brass	Gold	Bayonet Lock	Plastic	Black	Backshell							0.16 in	0.18 in	4.06 mm	4.57 mm
Conxall/Switchcraft 6380-3SG-522	Female Sockets Plug	Automotive Communication Systems Instrumentation	Free Hanging (In-Line)	Unshielded	Crimp	Nylon Polyamide (PA)	-40 °C	115 °C	Weathertight	600 V	Keyed	Varies by Wire Gauge	Brass	Gold	Bayonet Lock	Plastic	Black	Backshell			0.25 in	0.22 in	5.59 mm	6.35 mm
Conxall/Switchcraft 6380-3SG-311	Female Sockets Plug	Automotive Communication Systems Instrumentation	Free Hanging (In-Line)	Unshielded	Crimp	Nylon Polyamide (PA)	-40 °C	115 °C	Weathertight	600 V	Keyed	Varies by Wire Gauge	Brass	Gold	Bayonet Lock	Plastic	Black	Backshell											2.29 mm	0.09 in 0.14 in	3.56 mm
Conxall/Switchcraft 6380-3SG-315	Female Sockets Plug	Automotive Communication Systems Instrumentation	Free Hanging (In-Line)	Unshielded	Crimp	Nylon Polyamide (PA)	-40 °C	115 °C	Weathertight	600 V	Keyed	Varies by Wire Gauge	Brass	Gold	Bayonet Lock	Plastic	Black	Backshell	0.15 in 0.17 in	3.81 mm 4.32 mm
