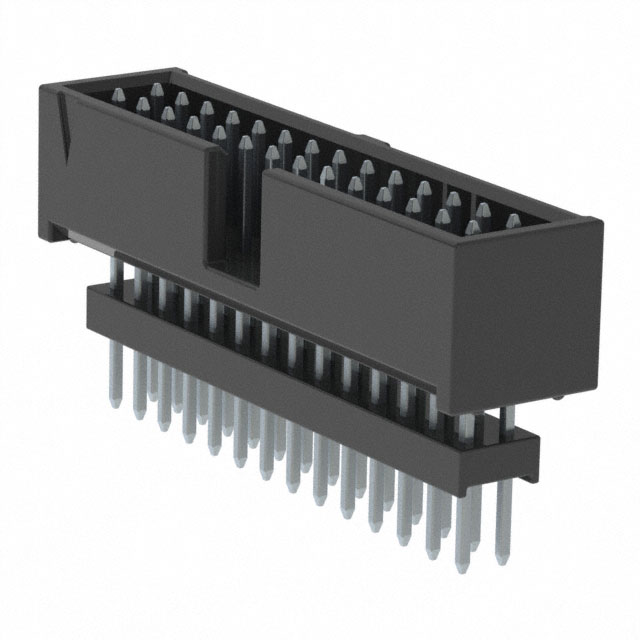

ZSS-114-02-T-D-595

Active

Samtec Inc.

CONN HDR .100" 28POS

Deep-Dive with AI

Search across all available documentation for this part.

ZSS-114-02-T-D-595

Active

Samtec Inc.

CONN HDR .100" 28POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-114-02-T-D-595

Connector Type	Elevated, Header
Contact Finish - Post	Tin
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post [x]	0.135 in
Contact Length - Post [x]	3.43 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	15.11 mm
Insulation Height	0.595 in
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	28
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.73 in
Overall Contact Length	18.54 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

ZSS-114 Series

Part	Insulation Height	Insulation Height	Current Rating (Amps)	Style	Contact Material	Number of Positions	Insulation Color	Contact Finish - Mating	Overall Contact Length [x]	Overall Contact Length [x]	Contact Shape	Pitch - Mating	Pitch - Mating	Shrouding	Contact Type	Connector Type	Contact Length - Post	Contact Length - Post	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Contact Finish - Post	Termination	Fastening Type	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Number of Rows	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [custom]	Insulation Height [custom]	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. ZSS-114-03-L-D-715
Samtec Inc. ZSS-114-01-G-S-540	0.54 in	13.72 mm	3 A	Board to Board Cable	Phosphor Bronze	14	Black	Gold	0.63 "	16 mm	Square	0.1 in	2.54 mm	Shrouded - 4 Wall	Male Pin	Elevated Header	0.09 "	2.29 mm	Polyester Glass Filled	10 çin	0.25 çm	Keying Slot	3 µin	0.076 µm	Through Hole	Gold	Solder	Push-Pull	UL94 V-0	6.35 mm	0.25 in	1	All	-55 °C	125 °C
Samtec Inc. ZSS-114-01-T-D-540
Samtec Inc. ZSS-114-03-L-D-740
Samtec Inc. ZSS-114-04-L-S-840			3 A	Board to Board Cable	Phosphor Bronze	14	Black	Gold			Square	0.1 in	2.54 mm	Shrouded - 4 Wall	Male Pin	Elevated Header	0.09 "	2.29 mm	Polyester Glass Filled	10 çin	0.25 çm	Keying Slot			Through Hole	Tin	Solder	Push-Pull	UL94 V-0	6.35 mm	0.25 in	1	All	-55 °C	125 °C	0.84 in	21.34 mm	0.93 in	23.62 mm
Samtec Inc. ZSS-114-01-S-D-515
Samtec Inc. ZSS-114-09-L-D-1340
Samtec Inc. ZSS-114-06-G-D-1040
Samtec Inc. ZSS-114-09-G-D-840
Samtec Inc. ZSS-114-02-T-D-595	0.595 in	15.11 mm	3 A	Board to Board Cable	Phosphor Bronze	28	Black				Square	0.1 in	2.54 mm	Shrouded - 4 Wall	Male Pin	Elevated Header			Polyester Glass Filled			Keying Slot			Through Hole	Tin	Solder	Push-Pull	UL94 V-0	6.35 mm	0.25 in	2	All	-55 °C	105 ░C			0.73 in	18.54 mm	2.54 mm	0.1 in	0.135 in	3.43 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.07

Description

General part information

ZSS-114 Series

Connector Header Through Hole 28 position 0.100" (2.54mm)
