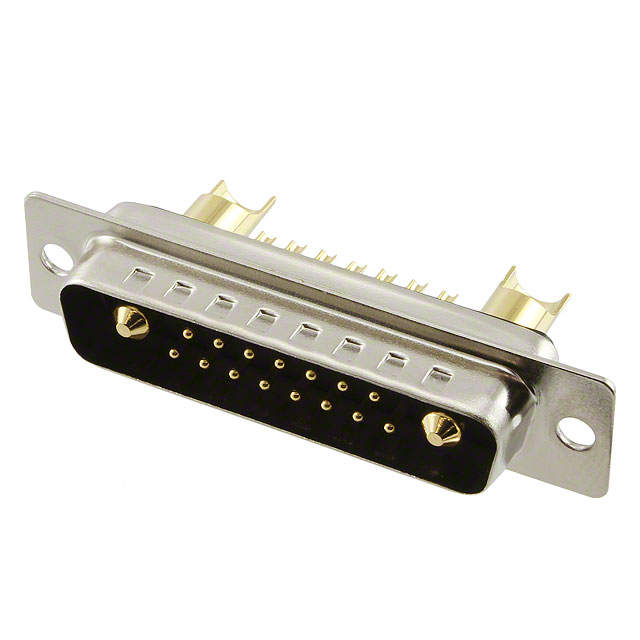

680M17W2103L401 - 680M17W2103L401

680M17W2103L401

Active
MH Connectors

COMBO D-SUB CONN, PLUG, DB-17W2, CABLE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDrawing EN+2
680M17W2103L401 - 680M17W2103L401

680M17W2103L401

Active
MH Connectors

COMBO D-SUB CONN, PLUG, DB-17W2, CABLE ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheetDrawing EN+2

Technical Specifications

Parameters and characteristics for this part

Specification680M17W2103L401
ColorBlack
Connector StyleD-Sub, Combo
Connector TypePlug, Male Pins
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialCopper Alloy
Contact TypeSignal and Power
Current Rating (Amps)40 A, 5 A
Dielectric MaterialPolybutylene Terephthalate (PBT)
FeaturesGrounding Indents
Flange FeatureHousing/Shell (Unthreaded)
Material Flammability RatingUL94 V-0
Number of Positions [custom]15
Number of Positions [custom]2
Number of Rows2
Operating Temperature [Max]155 °C
Operating Temperature [Min]-55 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout17W2, 3 (DB, B)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 12.38
10$ 10.97
25$ 10.55
50$ 10.13
100$ 9.56
250$ 8.72
450$ 8.16
500$ 7.54
950$ 7.48
1000$ 7.18
NewarkEach 1$ 12.38
10$ 10.55
25$ 10.34
50$ 10.12
100$ 9.56
250$ 8.15

Description

General part information

680M17W Series

17 (15 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
