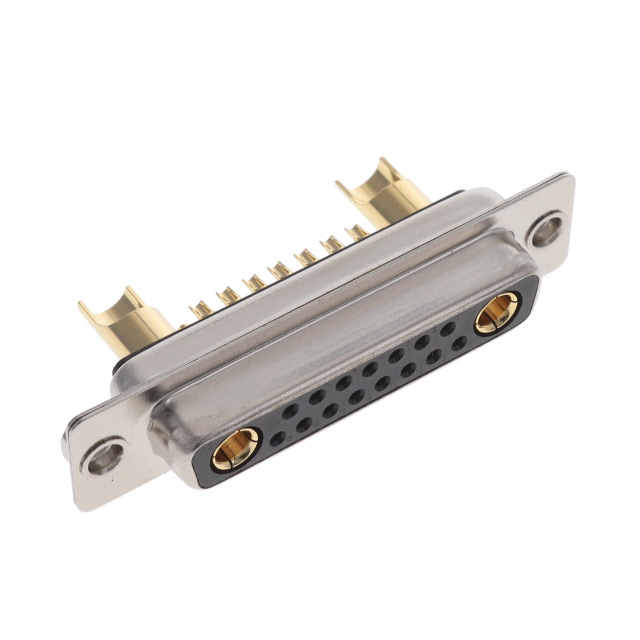

680M17W2203L411

Active

MH Connectors

CONN D-SUB RCPT 17POS PNL MNT

Search across all available documentation for this part.

Active

MH Connectors

CONN D-SUB RCPT 17POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	680M17W2203L411

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Cable Side
Material Flammability Rating	UL94 V-0
Number of Positions [custom]	15
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	17W2, 3 (DB, B)

Part	Material Flammability Rating	Dielectric Material	Contact Finish	Features	Contact Type	Connector Type	Number of Rows	Contact Material	Connector Style	Current Rating (Amps)	Flange Feature	Contact Finish Thickness	Shell Material, Finish	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Positions [custom]	Number of Positions [custom]	Shell Size, Connector Layout
MH Connectors 680M17W2103L401	UL94 V-0	Polybutylene Terephthalate (PBT)	Gold	Grounding Indents	Signal and Power	Male Pins Plug	2	Copper Alloy	Combo D-Sub	5 A 40 A	Housing/Shell (Unthreaded)	Flash	Nickel Plated Steel	155 °C	-55 °C	Black	15	2	17W2 3 (DB B)
MH Connectors 680M17W2203L411	UL94 V-0	Polybutylene Terephthalate (PBT)	Gold		Signal and Power	Receptacle Female Sockets	2	Copper Alloy	Combo D-Sub	5 A 40 A	Cable Side	Flash	Nickel Plated Steel	125 °C	-55 °C	Black	15	2	17W2 3 (DB B)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

17 (15 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
