H2103B01

Active

Harwin Inc.

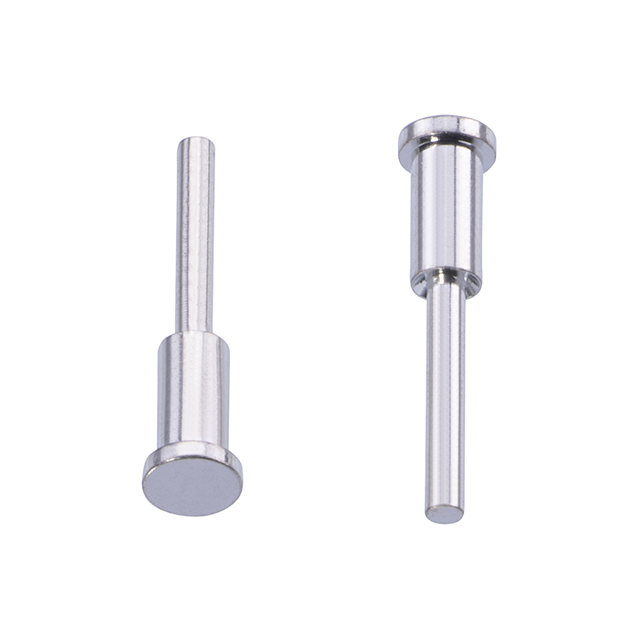

MALE VERTICAL THROUGHBOARD TERMINAL PIN ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

MALE VERTICAL THROUGHBOARD TERMINAL PIN ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	H2103B01

Board Thickness	3.2 mm
Board Thickness	0.126 in
Contact Finish	Tin
Contact Material	Brass
Flange Diameter [diameter]	2.39 mm
Flange Diameter [diameter]	0.094 in
Insulation	Non-Insulated
Length - Overall [x]	0.415 in
Length - Overall [x]	10.54 mm
Mounting Hole Diameter [Max]	0.074 in
Mounting Hole Diameter [Max]	1.87 mm
Mounting Hole Diameter [Min]	0.07 in
Mounting Hole Diameter [Min]	1.78 mm
Mounting Type	Through Hole
Pin Size - Below Flange [diameter]	0.038 in
Pin Size - Below Flange [diameter]	0.97 mm
Terminal Style	Single End
Terminal Type	PC Pin
Termination	Solder

Part	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Max]	Mounting Type	Terminal Style	Length - Overall [x]	Length - Overall [x]	Contact Finish	Length - Above Flange [x]	Length - Above Flange [x]	Board Thickness	Board Thickness	Terminal Type	Termination	Length - Below Flange [x]	Length - Below Flange [x]	Insulation	Pin Size - Below Flange [diameter]	Pin Size - Below Flange [diameter]
Harwin Inc. H2103A01	Brass	2.39 mm	0.094 in	0.038 in	0.97 mm	0.07 in	1.78 mm	0.074 in	1.87 mm	Through Hole	Single End	0.402 in	10.2 mm	Tin	6.02 mm	0.237 in	3.2 mm	0.126 in	PC Pin	Swage	0.145 in	3.68 mm	Non-Insulated
Harwin Inc. H2103B01	Brass	2.39 mm	0.094 in			0.07 in	1.78 mm	0.074 in	1.87 mm	Through Hole	Single End	0.415 in	10.54 mm	Tin			3.2 mm	0.126 in	PC Pin	Solder			Non-Insulated	0.038 in	0.97 mm
