H2103A01
ActiveHarwin Inc.

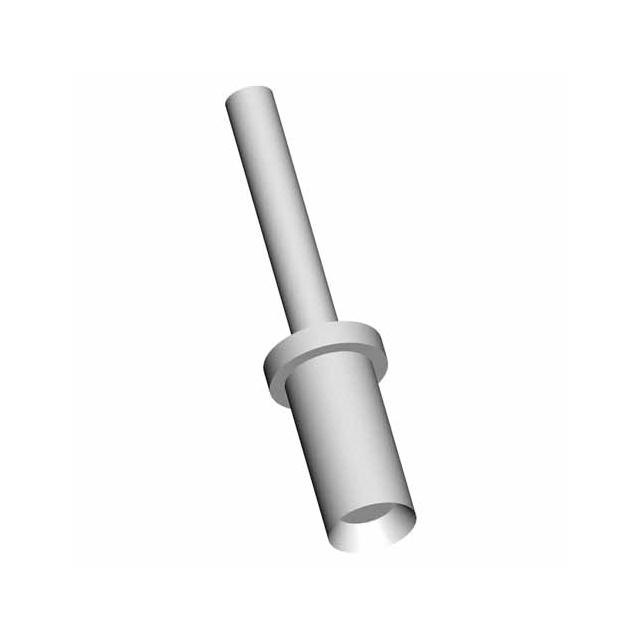

MALE VERTICAL THROUGHBOARD TERMINAL PIN ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H2103A01
ActiveHarwin Inc.
MALE VERTICAL THROUGHBOARD TERMINAL PIN ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H2103A01 |
|---|---|
| Board Thickness | 3.2 mm |
| Board Thickness | 0.126 in |
| Contact Finish | Tin |
| Contact Material | Brass |
| Flange Diameter [diameter] | 2.39 mm |
| Flange Diameter [diameter] | 0.094 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 6.02 mm |
| Length - Above Flange [x] | 0.237 in |
| Length - Below Flange [x] | 0.145 in |
| Length - Below Flange [x] | 3.68 mm |
| Length - Overall [x] | 0.402 in |
| Length - Overall [x] | 10.2 mm |
| Mounting Hole Diameter [Max] | 0.074 in |
| Mounting Hole Diameter [Max] | 1.87 mm |
| Mounting Hole Diameter [Min] | 0.07 in |
| Mounting Hole Diameter [Min] | 1.78 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.038 in |
| Pin Size - Above Flange [diameter] | 0.97 mm |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
H2103 Series
PC Pin Terminal Connector Through Hole Tin 0.038" (0.97mm) Dia
