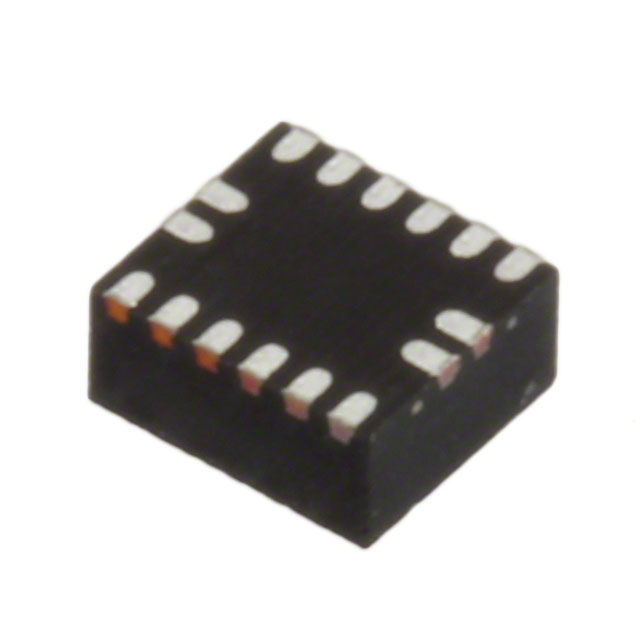

EP5358LUI

Obsolete

Altera

DC DC CONVERTER 0.6-5.2V 3W

Search across all available documentation for this part.

Obsolete

Altera

DC DC CONVERTER 0.6-5.2V 3W

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output	Main Purpose	Outputs and Type	Outputs and Type	Supplied Contents	Frequency - Switching	Regulator Topology	Utilized IC / Part	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Supplier Device Package	Features	Type	Voltage - Input (Min) [Min]	Package / Case	Number of Outputs	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max) [Max]	Efficiency	Control Features	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Altera EVB-EP5358LUA	600 mA	DC/DC Step Down	Non-Isolated	1	Board(s)	5 MHz	Buck	EP5358LUA	Fully Populated	2.4 V	5.5 V
Altera EP5358LUI												ITE (Commercial)	16-µQFN (2.5x2.25)	OCP OTP Remote On/Off SCP UVLO	Non-Isolated PoL Module	2.4 V	16-PowerTFQFN Module	1	0.6 V	5.2 V	Surface Mount	0.1 in	2.5 mm	1.1 mm	2.3 mm	0.04 in	0.09 "	600 mA	93 %	Active High Enable	5.5 V	85 °C	-40 °C
Altera EP5358HUA												ITE (Commercial)	16-µQFN (2.5x2.25)	OCP OTP SCP UVLO	Non-Isolated PoL Module	2.4 V	16-PowerTFQFN Module	1	1.8 V	3.3 V	Surface Mount	0.1 in	2.5 mm	1.1 mm	2.3 mm	0.04 in	0.09 "	600 mA	93 %		5.5 V	105 ░C	-40 °C
Altera EP5358LUA												ITE (Commercial)	16-µQFN (2.5x2.25)	OCP OTP SCP UVLO	Non-Isolated PoL Module	2.4 V	16-PowerTFQFN Module	1	0.6 V	5.2 V	Surface Mount	0.1 in	2.5 mm	1.1 mm	2.3 mm	0.04 in	0.09 "	600 mA	93 %		5.5 V	105 ░C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.2V 600mA 2.4V - 5.5V Input
