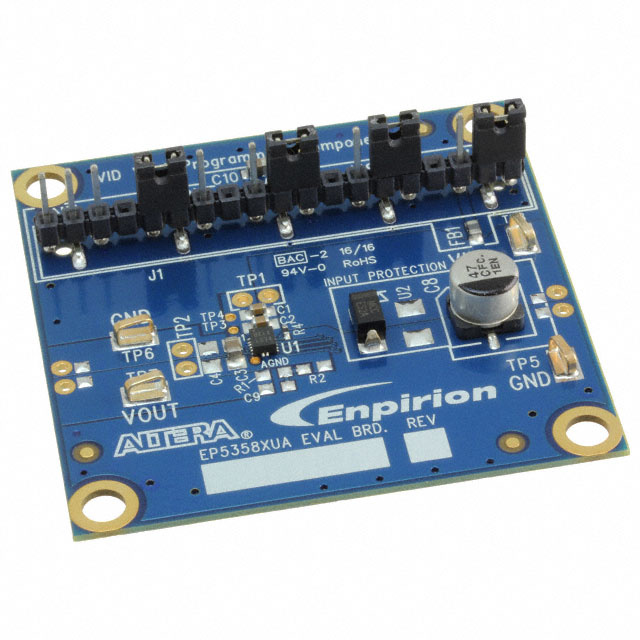

EVB-EP5358LUA

Obsolete

Altera

BOARD EVAL EP5358L Q100 600MA DC

Search across all available documentation for this part.

Obsolete

Altera

BOARD EVAL EP5358L Q100 600MA DC

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output	Main Purpose	Outputs and Type	Outputs and Type	Supplied Contents	Frequency - Switching	Regulator Topology	Utilized IC / Part	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Supplier Device Package	Features	Type	Voltage - Input (Min) [Min]	Package / Case	Number of Outputs	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max) [Max]	Efficiency	Control Features	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Altera EVB-EP5358LUA	600 mA	DC/DC Step Down	Non-Isolated	1	Board(s)	5 MHz	Buck	EP5358LUA	Fully Populated	2.4 V	5.5 V
Altera EP5358LUI												ITE (Commercial)	16-µQFN (2.5x2.25)	OCP OTP Remote On/Off SCP UVLO	Non-Isolated PoL Module	2.4 V	16-PowerTFQFN Module	1	0.6 V	5.2 V	Surface Mount	0.1 in	2.5 mm	1.1 mm	2.3 mm	0.04 in	0.09 "	600 mA	93 %	Active High Enable	5.5 V	85 °C	-40 °C
Altera EP5358HUA												ITE (Commercial)	16-µQFN (2.5x2.25)	OCP OTP SCP UVLO	Non-Isolated PoL Module	2.4 V	16-PowerTFQFN Module	1	1.8 V	3.3 V	Surface Mount	0.1 in	2.5 mm	1.1 mm	2.3 mm	0.04 in	0.09 "	600 mA	93 %		5.5 V	105 ░C	-40 °C
Altera EP5358LUA												ITE (Commercial)	16-µQFN (2.5x2.25)	OCP OTP SCP UVLO	Non-Isolated PoL Module	2.4 V	16-PowerTFQFN Module	1	0.6 V	5.2 V	Surface Mount	0.1 in	2.5 mm	1.1 mm	2.3 mm	0.04 in	0.09 "	600 mA	93 %		5.5 V	105 ░C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

EP5358LUA Enpirion® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
