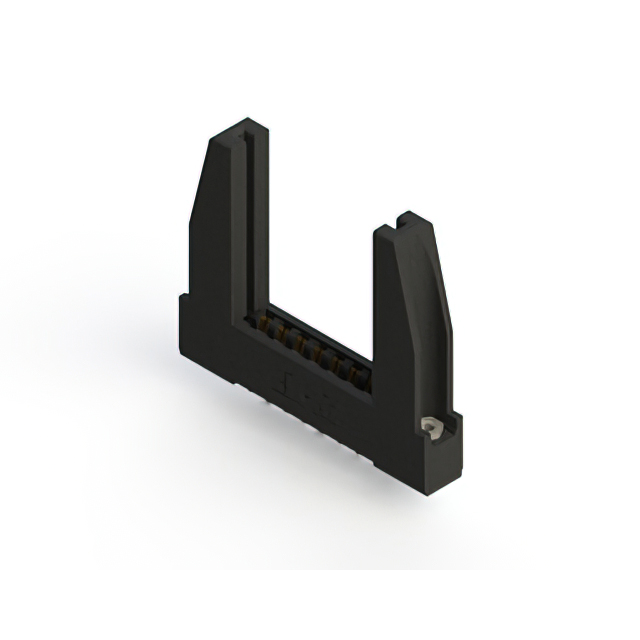

357-008-527-178

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

357-008-527-178

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	357-008-527-178

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	8
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

357-008 Series

...

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Flange Feature	Features	Gender	Termination	Color	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Termination Rows	Contact Finish	Number of Rows	Material - Insulation	Card Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Pitch [x]	Pitch [x]	Read Out	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 357-008-527-178	10 Áin	0.25 Ám	8	8	8	4-40 Flush Mount Threaded Insert Top Opening	Card Guides	Female	Solder	Black	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	Gold	1	Polyester Thermoplastic	Non Specified - Single Edge	Through Hole	-40 °C	105 ░C	8	0.156 in	3.96 mm	Single
EDAC Inc. 357-008-553-168	10 Áin	0.25 Ám	8	8	8	4-40 Flush Mount Threaded Insert Top Opening	Card Guides	Female	Solder	Black	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	Gold	2	Polyester Thermoplastic	Non Specified - Dual Edge	Through Hole Right Angle	-40 °C	105 ░C		0.156 in	3.96 mm	Dual	16
EDAC Inc. 357-008-545-102	10 Áin	0.25 Ám	8	8	8	Flush Mount Top Opening Unthreaded		Female	Wire Wrap	Black	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	Gold	1	Polyester Thermoplastic	Non Specified - Single Edge	Through Hole	-40 °C	105 ░C	8	0.156 in	3.96 mm	Single		3.25 mm	0.128 "
EDAC Inc. 357-008-401-178			8	8	8	4-40 Flush Mount Threaded Insert Top Opening	Card Guides	Female	Solder Eyelet(s)	Black	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	Tin	2	Polyester Thermoplastic	Non Specified - Dual Edge	Through Hole	-40 °C	105 ░C		0.156 in	3.96 mm	Dual	16
EDAC Inc. 357-008-505-104	10 Áin	0.25 Ám	8	8	8	Flush Mount Top Opening Unthreaded		Female	Solder Eyelet(s)	Black	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	Gold	1	Polyester Thermoplastic	Non Specified - Single Edge	Through Hole	-40 °C	105 ░C	8	0.156 in	3.96 mm	Single		3.96 mm	0.156 in
EDAC Inc. 357-008-425-102			8	8	8	Flush Mount Top Opening Unthreaded		Female	Solder	Black	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	Tin	1	Polyester Thermoplastic	Non Specified - Single Edge	Through Hole	-40 °C	105 ░C	8	0.156 in	3.96 mm	Single		3.25 mm	0.128 "
EDAC Inc. 357-008-405-168			8	8	8	4-40 Flush Mount Threaded Insert Top Opening	Card Guides	Female	Solder Eyelet(s)	Black	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	Tin	1	Polyester Thermoplastic	Non Specified - Single Edge	Through Hole	-40 °C	105 ░C	8	0.156 in	3.96 mm	Single
EDAC Inc. 357-008-545-108	10 Áin	0.25 Ám	8	8	8	4-40 Flush Mount Threaded Insert Top Opening		Female	Wire Wrap	Black	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	Gold	1	Polyester Thermoplastic	Non Specified - Single Edge	Through Hole	-40 °C	105 ░C	8	0.156 in	3.96 mm	Single
EDAC Inc. 357-008-459-107			8	8	8	Flush Mount M3 Threaded Insert Top Opening		Female	Solder	Black	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	Tin	1	Polyester Thermoplastic	Non Specified - Single Edge	Through Hole Right Angle	-40 °C	105 ░C	8	0.156 in	3.96 mm	Single
EDAC Inc. 357-008-525-158	10 Áin	0.25 Ám	8	8	8	4-40 Flush Mount Threaded Insert Top Opening	Card Guides	Female	Solder	Black	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	Gold	1	Polyester Thermoplastic	Non Specified - Single Edge	Through Hole	-40 °C	105 ░C	8	0.156 in	3.96 mm	Single

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 11.12
Newark	Each	25	$ 11.45
		50	$ 10.86
		100	$ 10.28
		250	$ 9.69

Description

General part information

357-008 Series

8 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
