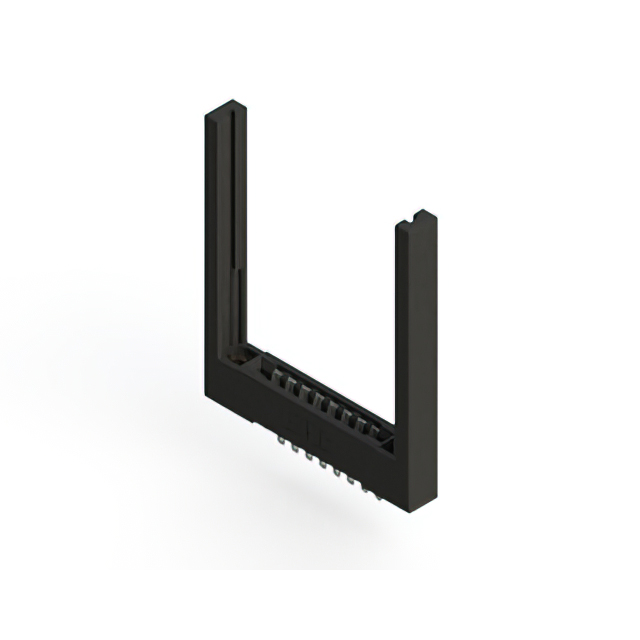

357-008-405-168

Active

EDAC Inc.

CONN EDGE SGL FML 8POS 0.156 TIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

357-008-405-168

Active

EDAC Inc.

CONN EDGE SGL FML 8POS 0.156 TIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	357-008-405-168

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	8
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder Eyelet(s)
Termination Rows	1

357-008 Series

...

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Flange Feature	Features	Gender	Termination	Color	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Termination Rows	Contact Finish	Number of Rows	Material - Insulation	Card Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Pitch [x]	Pitch [x]	Read Out	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 357-008-527-178	10 Áin	0.25 Ám	8	8	8	4-40 Flush Mount Threaded Insert Top Opening	Card Guides	Female	Solder	Black	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	Gold	1	Polyester Thermoplastic	Non Specified - Single Edge	Through Hole	-40 °C	105 ░C	8	0.156 in	3.96 mm	Single
EDAC Inc. 357-008-553-168	10 Áin	0.25 Ám	8	8	8	4-40 Flush Mount Threaded Insert Top Opening	Card Guides	Female	Solder	Black	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	Gold	2	Polyester Thermoplastic	Non Specified - Dual Edge	Through Hole Right Angle	-40 °C	105 ░C		0.156 in	3.96 mm	Dual	16
EDAC Inc. 357-008-545-102	10 Áin	0.25 Ám	8	8	8	Flush Mount Top Opening Unthreaded		Female	Wire Wrap	Black	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	Gold	1	Polyester Thermoplastic	Non Specified - Single Edge	Through Hole	-40 °C	105 ░C	8	0.156 in	3.96 mm	Single		3.25 mm	0.128 "
EDAC Inc. 357-008-401-178			8	8	8	4-40 Flush Mount Threaded Insert Top Opening	Card Guides	Female	Solder Eyelet(s)	Black	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	Tin	2	Polyester Thermoplastic	Non Specified - Dual Edge	Through Hole	-40 °C	105 ░C		0.156 in	3.96 mm	Dual	16
EDAC Inc. 357-008-505-104	10 Áin	0.25 Ám	8	8	8	Flush Mount Top Opening Unthreaded		Female	Solder Eyelet(s)	Black	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	Gold	1	Polyester Thermoplastic	Non Specified - Single Edge	Through Hole	-40 °C	105 ░C	8	0.156 in	3.96 mm	Single		3.96 mm	0.156 in
EDAC Inc. 357-008-425-102			8	8	8	Flush Mount Top Opening Unthreaded		Female	Solder	Black	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	Tin	1	Polyester Thermoplastic	Non Specified - Single Edge	Through Hole	-40 °C	105 ░C	8	0.156 in	3.96 mm	Single		3.25 mm	0.128 "
EDAC Inc. 357-008-405-168			8	8	8	4-40 Flush Mount Threaded Insert Top Opening	Card Guides	Female	Solder Eyelet(s)	Black	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	Tin	1	Polyester Thermoplastic	Non Specified - Single Edge	Through Hole	-40 °C	105 ░C	8	0.156 in	3.96 mm	Single
EDAC Inc. 357-008-545-108	10 Áin	0.25 Ám	8	8	8	4-40 Flush Mount Threaded Insert Top Opening		Female	Wire Wrap	Black	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	Gold	1	Polyester Thermoplastic	Non Specified - Single Edge	Through Hole	-40 °C	105 ░C	8	0.156 in	3.96 mm	Single
EDAC Inc. 357-008-459-107			8	8	8	Flush Mount M3 Threaded Insert Top Opening		Female	Solder	Black	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	Tin	1	Polyester Thermoplastic	Non Specified - Single Edge	Through Hole Right Angle	-40 °C	105 ░C	8	0.156 in	3.96 mm	Single
EDAC Inc. 357-008-525-158	10 Áin	0.25 Ám	8	8	8	4-40 Flush Mount Threaded Insert Top Opening	Card Guides	Female	Solder	Black	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	Gold	1	Polyester Thermoplastic	Non Specified - Single Edge	Through Hole	-40 °C	105 ░C	8	0.156 in	3.96 mm	Single

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 11.12

Description

General part information

357-008 Series

8 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Black
