WM2019-16-02

Active

Quest Manufacturing Co.

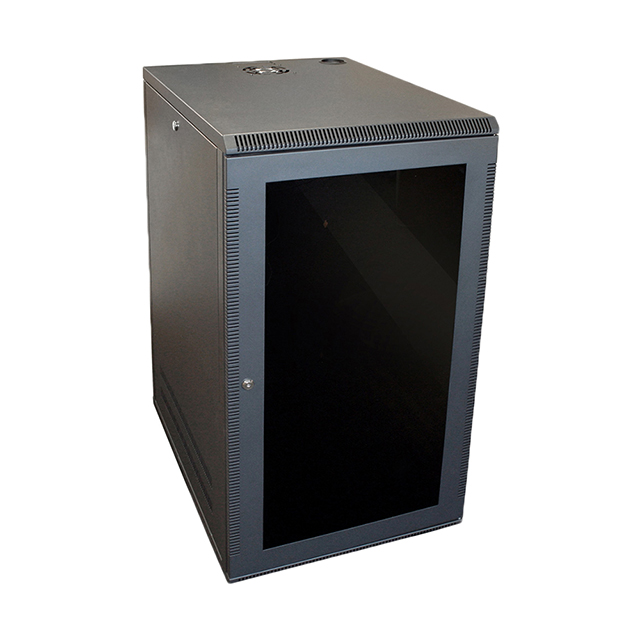

WALL ENCLOSURE FRONT/SIDE ACCESS

Search across all available documentation for this part.

Active

Quest Manufacturing Co.

WALL ENCLOSURE FRONT/SIDE ACCESS

Technical Specifications

Parameters and characteristics for this part

Specification	WM2019-16-02

Color	Black
Dimensions - Overall [x]	508 mm
Dimensions - Overall [x]	20 in
Dimensions - Overall [y]	21 in
Dimensions - Overall [y]	533.4 mm
Dimensions - Overall [z]	800.1 mm
Dimensions - Overall [z]	31.5 "
Dimensions - Panel [x]	19 in
Dimensions - Panel [x]	406.4 mm
Dimensions - Panel [y]	482.6 mm
Dimensions - Panel [y]	16 "
Dimensions - Panel [z]	711.2 mm
Dimensions - Panel [z]	28 in
Door	Acrylic
Material	Metal, Steel
Mounting Rails	Two Pair
Number of Units	16 U
Style	Bottom, Enclosed, Sides, Front, Top
Type	Cabinet Rack
Ventilation	Top, Back, Sides, Front

Part	Material	Ventilation	Dimensions - Overall [x]	Dimensions - Overall [x]	Dimensions - Overall [z]	Dimensions - Overall [z]	Dimensions - Overall [y]	Dimensions - Overall [y]	Mounting Rails	Color	Dimensions - Panel [y]	Dimensions - Panel [z]	Dimensions - Panel [y]	Dimensions - Panel [x]	Dimensions - Panel [x]	Dimensions - Panel [z]	Door	Type	Style	Number of Units	Number of Units
Quest Manufacturing Co. WM2019-07-02	Metal Steel	Back Front Sides Top	508 mm	20 in	406.4 mm	16 in	533.4 mm	21 in	Two Pair	Black	482.6 mm	317.5 mm	16 "	406.4 mm	19 in	12.5 "	Acrylic	Cabinet Rack	Bottom Enclosed Front Sides Top	7U
Quest Manufacturing Co. WM2019-16-02	Metal Steel	Back Front Sides Top	508 mm	20 in	800.1 mm	31.5 "	533.4 mm	21 in	Two Pair	Black	482.6 mm	711.2 mm	16 "	406.4 mm	19 in	28 in	Acrylic	Cabinet Rack	Bottom Enclosed Front Sides Top		16 U
Quest Manufacturing Co. WM2019-09-02	Metal Steel	Back Front Sides Top	508 mm	20 in	495.3 mm	19.5 in	533.4 mm	21 in	Two Pair	Black	482.6 mm	406.4 mm	16 "	406.4 mm	19 in	16 in	Acrylic	Cabinet Rack	Bottom Enclosed Front Sides Top	9U

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 456.36

General part information

Metal, Steel Cabinet Rack Enclosed, Bottom, Front, Sides, Top 20.000" L x 21.000" W x 31.500" H (508.00mm x 533.40mm x 800.10mm) Black

Technical documentation and resources

No documents available
