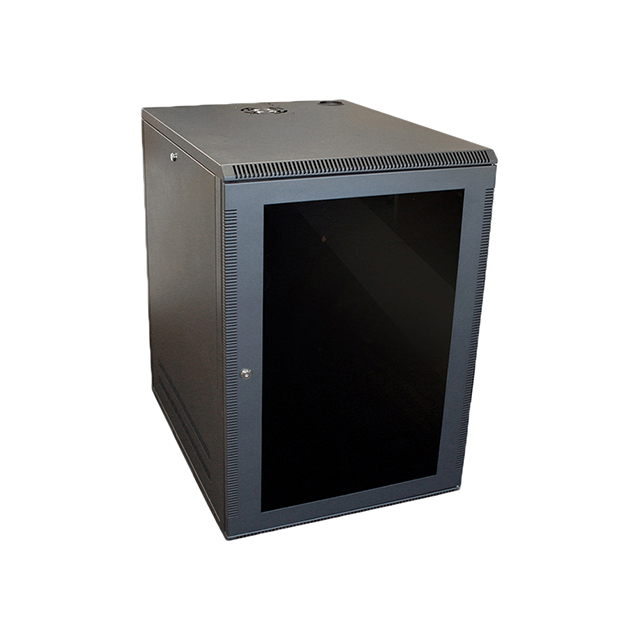

WM2019-09-02
ActiveQuest Manufacturing Co.
WALL ENCLOSURE FRONT/SIDE ACCESS
Deep-Dive with AI
Search across all available documentation for this part.
WM2019-09-02
ActiveQuest Manufacturing Co.
WALL ENCLOSURE FRONT/SIDE ACCESS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WM2019-09-02 |
|---|---|
| Color | Black |
| Dimensions - Overall [x] | 508 mm |
| Dimensions - Overall [x] | 20 in |
| Dimensions - Overall [y] | 533.4 mm |
| Dimensions - Overall [y] | 21 in |
| Dimensions - Overall [z] | 495.3 mm |
| Dimensions - Overall [z] | 19.5 in |
| Dimensions - Panel [x] | 19 in |
| Dimensions - Panel [x] | 406.4 mm |
| Dimensions - Panel [y] | 16 " |
| Dimensions - Panel [y] | 482.6 mm |
| Dimensions - Panel [z] | 406.4 mm |
| Dimensions - Panel [z] | 16 in |
| Door | Acrylic |
| Material | Metal, Steel |
| Mounting Rails | Two Pair |
| Number of Units | 9U |
| Style | Bottom, Enclosed, Sides, Front, Top |
| Type | Cabinet Rack |
| Ventilation | Top, Back, Sides, Front |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 344.66 | |
| 5 | $ 316.25 | |||
Description
General part information
WM2019 Series
Metal, Steel Cabinet Rack Enclosed, Bottom, Front, Sides, Top 20.000" L x 21.000" W x 19.500" H (508.00mm x 533.40mm x 495.30mm) Black
Documents
Technical documentation and resources
No documents available
