031-6590

Active

Amphenol RF

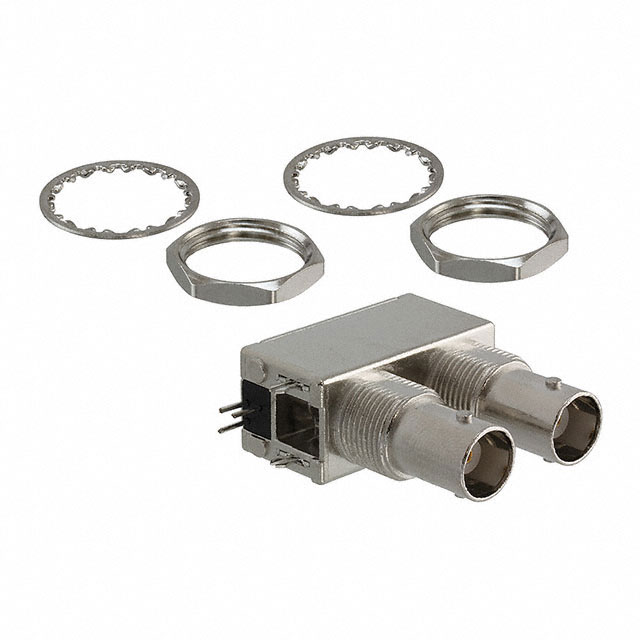

CONN BNC JACK R/A 50 OHM PCB

Deep-Dive with AI

Search across all available documentation for this part.

031-6590

Active

Amphenol RF

CONN BNC JACK R/A 50 OHM PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	031-6590

Body Finish	Nickel
Body Material	Zinc Die Cast
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polypropylene (PP)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	2 Lockwashers, 2 Nuts, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	500 V

031-65 Series

Part	Dielectric Material	Housing Color	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Ingress Protection	Mating Cycles	Cable Group	Contact Termination	Connector Type	Body Finish	Center Contact Material	Impedance	Includes	Voltage Rating	Body Material	Shield Termination	Mounting Type	Frequency - Max [Max]	Connector Style	Mounting Feature	Insertion Loss	Fastening Type	Features
Amphenol RF 031-6504	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Silver	Gold	85 °C	-40 °C	1	IP67 - Dust Tight Waterproof	500	Belden 7807A LMR-200	Solder	Female Socket Plug	Nickel	Beryllium Copper	50 Ohms	1 Connector 1 End Cap 1 Ferrule 1 Gasket 1 Heat Shrink	500 V	Brass	Crimp	Free Hanging (In-Line) Right Angle	6000 MHz	RP-TNC
Amphenol RF 031-6528	Polytetrafluoroethylene (PTFE)	Gold	Gold	165 °C	-65 ░C	1	IP67 - Dust Tight Waterproof	500		Solder	Jack Male Pin	Gold	Beryllium Copper	50 Ohms	1 Connector 1 Lockwasher 1 Nut	500 V	Brass	Solder	Panel Mount Right Angle Through Hole	3 GHz	RP-TNC	Bulkhead - Front Side Nut
Amphenol RF 031-6502	Polytetrafluoroethylene (PTFE)	Silver	Gold	85 °C	-40 °C	1	IP67 - Dust Tight Waterproof	500	Belden 7807A LMR-200	Solder	Female Socket Plug	Nickel	Beryllium Copper Brass	50 Ohms	1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Insulator	500 V	Brass	Crimp	Free Hanging (In-Line)	6000 MHz	RP-TNC
Amphenol RF 031-6578	Polypropylene (PP)	Silver	Gold	85 °C	-55 °C	2		500		Solder	Female Socket Jack	Nickel	Phosphor Bronze	50 Ohms		500 V	Zinc Die Cast	Solder	Panel Mount Right Angle Through Hole	1 GHz	BNC	Bulkhead - Front Side Nut	0.2 dB	Bayonet Lock
Amphenol RF 031-6506	Polytetrafluoroethylene (PTFE)	Silver	Gold	85 °C	-40 °C	1	IP67 - Dust Tight Waterproof	500	Belden 7807A LMR-200	Solder	Jack Male Pin	Nickel	Beryllium Copper Brass	50 Ohms	1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Insulator	500 V	Brass	Crimp	Free Hanging (In-Line)	6000 MHz	RP-TNC
Amphenol RF 031-6530	Polytetrafluoroethylene (PTFE)	Gold	Gold	165 °C	-65 ░C	1	IP67 - Dust Tight Waterproof	500		Solder	Female Socket Jack	Gold	Beryllium Copper	50 Ohms	1 Connector 1 Lockwasher 1 Nut	500 V	Brass	Solder	Board Edge End Launch Panel Mount	3 GHz	TNC	Bulkhead - Front Side Nut
Amphenol RF 031-6590	Polypropylene (PP)	Silver	Gold	85 °C	-55 °C	2		500		Solder	Female Socket Jack	Nickel	Phosphor Bronze	50 Ohms	1 Connector 2 Lockwashers 2 Nuts	500 V	Zinc Die Cast	Solder	Panel Mount Right Angle Through Hole	1 GHz	BNC	Bulkhead - Front Side Nut	0.2 dB	Bayonet Lock
Amphenol RF 031-6501-EE	Polytetrafluoroethylene (PTFE)	Natural	Gold	85 °C	-40 °C	1	IP67 - Dust Tight Waterproof	500	LMR-200	Crimp	Male Pin Plug	Nickel	Brass	50 Ohms			Brass	Crimp	Free Hanging (In-Line) Right Angle	6000 MHz	TNC
Amphenol RF 031-6576	Polypropylene (PP)	Silver White	Gold	85 °C	-55 °C	2		500		Solder	Female Socket Jack		Phosphor Bronze	50 Ohms		500 V	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Panel Mount Right Angle Through Hole	1 GHz	BNC	Bulkhead - Front Side Nut	0.2 dB	Bayonet Lock	Board Lock Isolated
Amphenol RF 031-6577	Polypropylene (PP)	Silver	Gold	85 °C	-55 °C	2		500		Solder	Female Socket Jack	Nickel	Phosphor Bronze	50 Ohms		500 V	Zinc Die Cast	Solder	Panel Mount Right Angle Through Hole	1 GHz	BNC	Bulkhead - Front Side Nut	0.2 dB	Bayonet Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 21.02
		10	$ 16.18
		25	$ 14.65
		40	$ 13.93
		100	$ 12.66
		300	$ 11.35
		500	$ 10.80

Description

General part information

031-65 Series

BNC Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder
