031-6502
ActiveAmphenol RF

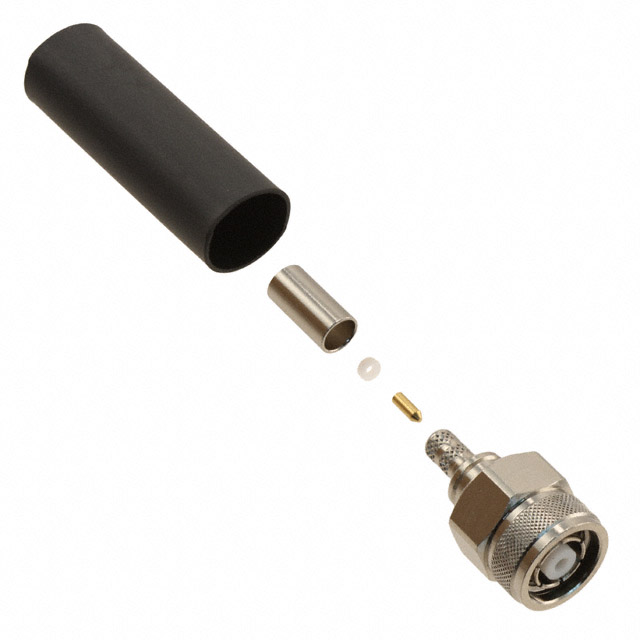

CONN RPTNC PLUG STR 50OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
031-6502
ActiveAmphenol RF
CONN RPTNC PLUG STR 50OHM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 031-6502 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | Belden 7807A, LMR-200 |
| Center Contact Material | Brass, Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | RP-TNC |
| Connector Type | Plug, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Ferrule, 1 Connector, 1 Contact, 1 Heat Shrink, 1 Insulator |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
031-65 Series
| Part | Dielectric Material | Housing Color | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Number of Ports | Ingress Protection | Mating Cycles | Cable Group | Contact Termination | Connector Type | Body Finish | Center Contact Material | Impedance | Includes | Voltage Rating | Body Material | Shield Termination | Mounting Type | Frequency - Max [Max] | Connector Style | Mounting Feature | Insertion Loss | Fastening Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Silver | Gold | 85 °C | -40 °C | 1 | IP67 - Dust Tight Waterproof | 500 | Belden 7807A LMR-200 | Solder | Female Socket Plug | Nickel | Beryllium Copper | 50 Ohms | 1 Connector 1 End Cap 1 Ferrule 1 Gasket 1 Heat Shrink | 500 V | Brass | Crimp | Free Hanging (In-Line) Right Angle | 6000 MHz | RP-TNC | ||||
Amphenol RF | Polytetrafluoroethylene (PTFE) | Gold | Gold | 165 °C | -65 ░C | 1 | IP67 - Dust Tight Waterproof | 500 | Solder | Jack Male Pin | Gold | Beryllium Copper | 50 Ohms | 1 Connector 1 Lockwasher 1 Nut | 500 V | Brass | Solder | Panel Mount Right Angle Through Hole | 3 GHz | RP-TNC | Bulkhead - Front Side Nut | ||||
Amphenol RF | Polytetrafluoroethylene (PTFE) | Silver | Gold | 85 °C | -40 °C | 1 | IP67 - Dust Tight Waterproof | 500 | Belden 7807A LMR-200 | Solder | Female Socket Plug | Nickel | Beryllium Copper Brass | 50 Ohms | 1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Insulator | 500 V | Brass | Crimp | Free Hanging (In-Line) | 6000 MHz | RP-TNC | ||||
Amphenol RF | Polypropylene (PP) | Silver | Gold | 85 °C | -55 °C | 2 | 500 | Solder | Female Socket Jack | Nickel | Phosphor Bronze | 50 Ohms | 500 V | Zinc Die Cast | Solder | Panel Mount Right Angle Through Hole | 1 GHz | BNC | Bulkhead - Front Side Nut | 0.2 dB | Bayonet Lock | ||||
Amphenol RF | Polytetrafluoroethylene (PTFE) | Silver | Gold | 85 °C | -40 °C | 1 | IP67 - Dust Tight Waterproof | 500 | Belden 7807A LMR-200 | Solder | Jack Male Pin | Nickel | Beryllium Copper Brass | 50 Ohms | 1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Insulator | 500 V | Brass | Crimp | Free Hanging (In-Line) | 6000 MHz | RP-TNC | ||||
Amphenol RF | Polytetrafluoroethylene (PTFE) | Gold | Gold | 165 °C | -65 ░C | 1 | IP67 - Dust Tight Waterproof | 500 | Solder | Female Socket Jack | Gold | Beryllium Copper | 50 Ohms | 1 Connector 1 Lockwasher 1 Nut | 500 V | Brass | Solder | Board Edge End Launch Panel Mount | 3 GHz | TNC | Bulkhead - Front Side Nut | ||||
Amphenol RF | Polypropylene (PP) | Silver | Gold | 85 °C | -55 °C | 2 | 500 | Solder | Female Socket Jack | Nickel | Phosphor Bronze | 50 Ohms | 1 Connector 2 Lockwashers 2 Nuts | 500 V | Zinc Die Cast | Solder | Panel Mount Right Angle Through Hole | 1 GHz | BNC | Bulkhead - Front Side Nut | 0.2 dB | Bayonet Lock | |||
Amphenol RF | Polytetrafluoroethylene (PTFE) | Natural | Gold | 85 °C | -40 °C | 1 | IP67 - Dust Tight Waterproof | 500 | LMR-200 | Crimp | Male Pin Plug | Nickel | Brass | 50 Ohms | Brass | Crimp | Free Hanging (In-Line) Right Angle | 6000 MHz | TNC | ||||||
Amphenol RF | Polypropylene (PP) | Silver White | Gold | 85 °C | -55 °C | 2 | 500 | Solder | Female Socket Jack | Phosphor Bronze | 50 Ohms | 500 V | Polybutylene Terephthalate (PBT) Glass Filled | Solder | Panel Mount Right Angle Through Hole | 1 GHz | BNC | Bulkhead - Front Side Nut | 0.2 dB | Bayonet Lock | Board Lock Isolated | ||||
Amphenol RF | Polypropylene (PP) | Silver | Gold | 85 °C | -55 °C | 2 | 500 | Solder | Female Socket Jack | Nickel | Phosphor Bronze | 50 Ohms | 500 V | Zinc Die Cast | Solder | Panel Mount Right Angle Through Hole | 1 GHz | BNC | Bulkhead - Front Side Nut | 0.2 dB | Bayonet Lock |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 23.33 | |
Description
General part information
031-65 Series
RP-TNC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
Documents
Technical documentation and resources
No documents available
