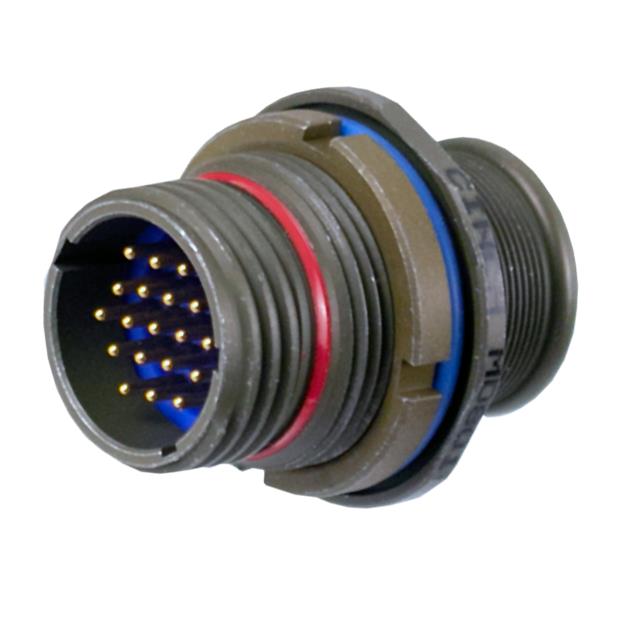

MD801-009-07NF13-2PE

Active

Cinch Connectivity Solutions Trompeter

CIRCULAR CONNECTOR, MIL-DTL-38999 SERIES, M801 SERIES, JAM NUT RECEPTACLE, 2 CONTACTS, CRIMP PIN

Deep-Dive with AI

Search across all available documentation for this part.

MD801-009-07NF13-2PE

Active

Cinch Connectivity Solutions Trompeter

CIRCULAR CONNECTOR, MIL-DTL-38999 SERIES, M801 SERIES, JAM NUT RECEPTACLE, 2 CONTACTS, CRIMP PIN

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MD801-009-07NF13-2PE

Applications	Military, Aerospace
Cable Opening [custom]	0.65 in
Cable Opening [custom]	16.5 mm
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Current Rating (Amps)	5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	2
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	E
Primary Material	Metal
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert	13-2
Shielding	Shielded
Termination	Crimp

MD801-009 Series

Part	Applications	Current Rating (Amps)	Shell Finish	Connector Type	Termination	Orientation	Ingress Protection	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Feature	Shielding	Color	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Cable Opening [custom]	Cable Opening [custom]	Primary Material	Shell Size - Insert
Cinch Connectivity Solutions Trompeter MD801-009-07NF13-37PF	Aerospace Military	5 A	Olive Drab Chromate over Cadmium	Male Pins Receptacle	Crimp	F	IP67 - Dust Tight Waterproof	Aluminum	-65 ░C	347 °F	37	Bulkhead - Front Side Nut	Shielded	Olive Drab	13	37
Cinch Connectivity Solutions Trompeter MD801-009-07M13-37SD	Aerospace Military	5 A	Electroless Nickel	Receptacle Female Sockets	Crimp	D	IP67 - Dust Tight Waterproof	Aluminum	-65 ░C	347 °F	37	Bulkhead - Front Side Nut	Shielded	Silver	13	37
Cinch Connectivity Solutions Trompeter MD801-009-07M10-26PB	Aerospace Military	5 A	Electroless Nickel	Male Pins Receptacle	Crimp	B	IP67 - Dust Tight Waterproof	Aluminum	-65 ░C	347 °F	26	Bulkhead - Front Side Nut	Shielded	Silver	10	26
Cinch Connectivity Solutions Trompeter MD801-009-07M7-10PF	Aerospace Military	5 A	Electroless Nickel	Male Pins Receptacle	Crimp	F	IP67 - Dust Tight Waterproof	Aluminum	-65 ░C	347 °F	10	Bulkhead - Front Side Nut	Shielded	Silver			0.39 in	9.91 mm	Metal
Cinch Connectivity Solutions Trompeter MD801-009-07NF9-19PB	Aerospace Military	5 A	Olive Drab Chromate over Cadmium	Male Pins Receptacle	Crimp	B	IP67 - Dust Tight Waterproof	Aluminum	-65 ░C	347 °F	19	Bulkhead - Front Side Nut	Shielded	Olive Drab	9	19
Cinch Connectivity Solutions Trompeter MD801-009-07NF13-2PE	Aerospace Military	5 A	Olive Drab Chromate over Cadmium	Male Pins Receptacle	Crimp	E	IP67 - Dust Tight Waterproof	Aluminum	-65 ░C	347 °F	2	Bulkhead - Front Side Nut	Shielded	Olive Drab			0.65 in	16.5 mm	Metal	13-2
Cinch Connectivity Solutions Trompeter MD801-009-07NF6-7SD	Aerospace Military	5 A	Olive Drab Chromate over Cadmium	Receptacle Female Sockets	Crimp	D	IP67 - Dust Tight Waterproof	Aluminum	-65 ░C	347 °F	7	Bulkhead - Front Side Nut	Shielded	Olive Drab	6	7
Cinch Connectivity Solutions Trompeter MD801-009-07M6-4SF	Aerospace Military	5 A	Electroless Nickel	Receptacle Female Sockets	Crimp	F	IP67 - Dust Tight Waterproof	Aluminum	-65 ░C	347 °F	4	Bulkhead - Front Side Nut	Shielded	Silver	4	6	0.29 in	7.37 mm	Metal
Cinch Connectivity Solutions Trompeter MD801-009-07M13-3PB	Aerospace Military	5 A	Electroless Nickel	Male Pins Receptacle	Crimp	B	IP67 - Dust Tight Waterproof	Aluminum	-65 ░C	347 °F		Bulkhead - Front Side Nut	Shielded	Silver			0.65 in	16.5 mm	Metal	13-3
Cinch Connectivity Solutions Trompeter MD801-009-07M13-3PD	Aerospace Military	5 A	Electroless Nickel	Male Pins Receptacle	Crimp	D	IP67 - Dust Tight Waterproof	Aluminum	-65 ░C	347 °F		Bulkhead - Front Side Nut	Shielded	Silver			0.65 in	16.5 mm	Metal	13-3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 73.33

Description

General part information

MD801-009 Series

MD 801 series connector features a Dual-Start ACME thread for protection against cross mating and vibration. Designed for military and aerospace, the shells can be ordered in aluminum or stainless steel, with several options for finishes.

Documents

Technical documentation and resources

No documents available
