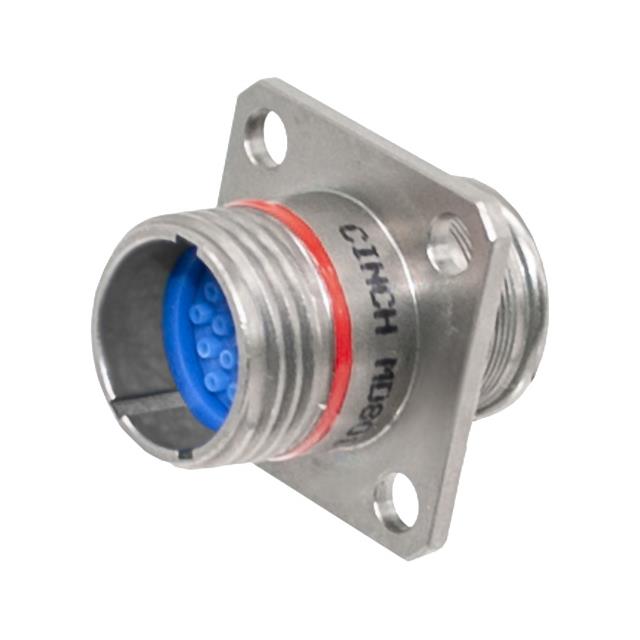

MD801-009-07NF9-19PB

Active

Cinch Connectivity Solutions Trompeter

MINIATURE D38999 CIRCULAR CONNEC

Deep-Dive with AI

Search across all available documentation for this part.

MD801-009-07NF9-19PB

Active

Cinch Connectivity Solutions Trompeter

MINIATURE D38999 CIRCULAR CONNEC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MD801-009-07NF9-19PB

Applications	Military, Aerospace
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Current Rating (Amps)	5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	19
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	B
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	19
Shell Size - Insert [Min]	9
Shielding	Shielded
Termination	Crimp

MD801-009 Series

Part	Applications	Current Rating (Amps)	Shell Finish	Connector Type	Termination	Orientation	Ingress Protection	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Feature	Shielding	Color	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Cable Opening [custom]	Cable Opening [custom]	Primary Material	Shell Size - Insert
Cinch Connectivity Solutions Trompeter MD801-009-07NF13-37PF	Aerospace Military	5 A	Olive Drab Chromate over Cadmium	Male Pins Receptacle	Crimp	F	IP67 - Dust Tight Waterproof	Aluminum	-65 ░C	347 °F	37	Bulkhead - Front Side Nut	Shielded	Olive Drab	13	37
Cinch Connectivity Solutions Trompeter MD801-009-07M13-37SD	Aerospace Military	5 A	Electroless Nickel	Receptacle Female Sockets	Crimp	D	IP67 - Dust Tight Waterproof	Aluminum	-65 ░C	347 °F	37	Bulkhead - Front Side Nut	Shielded	Silver	13	37
Cinch Connectivity Solutions Trompeter MD801-009-07M10-26PB	Aerospace Military	5 A	Electroless Nickel	Male Pins Receptacle	Crimp	B	IP67 - Dust Tight Waterproof	Aluminum	-65 ░C	347 °F	26	Bulkhead - Front Side Nut	Shielded	Silver	10	26
Cinch Connectivity Solutions Trompeter MD801-009-07M7-10PF	Aerospace Military	5 A	Electroless Nickel	Male Pins Receptacle	Crimp	F	IP67 - Dust Tight Waterproof	Aluminum	-65 ░C	347 °F	10	Bulkhead - Front Side Nut	Shielded	Silver			0.39 in	9.91 mm	Metal
Cinch Connectivity Solutions Trompeter MD801-009-07NF9-19PB	Aerospace Military	5 A	Olive Drab Chromate over Cadmium	Male Pins Receptacle	Crimp	B	IP67 - Dust Tight Waterproof	Aluminum	-65 ░C	347 °F	19	Bulkhead - Front Side Nut	Shielded	Olive Drab	9	19
Cinch Connectivity Solutions Trompeter MD801-009-07NF13-2PE	Aerospace Military	5 A	Olive Drab Chromate over Cadmium	Male Pins Receptacle	Crimp	E	IP67 - Dust Tight Waterproof	Aluminum	-65 ░C	347 °F	2	Bulkhead - Front Side Nut	Shielded	Olive Drab			0.65 in	16.5 mm	Metal	13-2
Cinch Connectivity Solutions Trompeter MD801-009-07NF6-7SD	Aerospace Military	5 A	Olive Drab Chromate over Cadmium	Receptacle Female Sockets	Crimp	D	IP67 - Dust Tight Waterproof	Aluminum	-65 ░C	347 °F	7	Bulkhead - Front Side Nut	Shielded	Olive Drab	6	7
Cinch Connectivity Solutions Trompeter MD801-009-07M6-4SF	Aerospace Military	5 A	Electroless Nickel	Receptacle Female Sockets	Crimp	F	IP67 - Dust Tight Waterproof	Aluminum	-65 ░C	347 °F	4	Bulkhead - Front Side Nut	Shielded	Silver	4	6	0.29 in	7.37 mm	Metal
Cinch Connectivity Solutions Trompeter MD801-009-07M13-3PB	Aerospace Military	5 A	Electroless Nickel	Male Pins Receptacle	Crimp	B	IP67 - Dust Tight Waterproof	Aluminum	-65 ░C	347 °F		Bulkhead - Front Side Nut	Shielded	Silver			0.65 in	16.5 mm	Metal	13-3
Cinch Connectivity Solutions Trompeter MD801-009-07M13-3PD	Aerospace Military	5 A	Electroless Nickel	Male Pins Receptacle	Crimp	D	IP67 - Dust Tight Waterproof	Aluminum	-65 ░C	347 °F		Bulkhead - Front Side Nut	Shielded	Silver			0.65 in	16.5 mm	Metal	13-3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 97.87

Description

General part information

MD801-009 Series

19 Position Circular Connector Receptacle, Male Pins Crimp

Documents

Technical documentation and resources

No documents available
