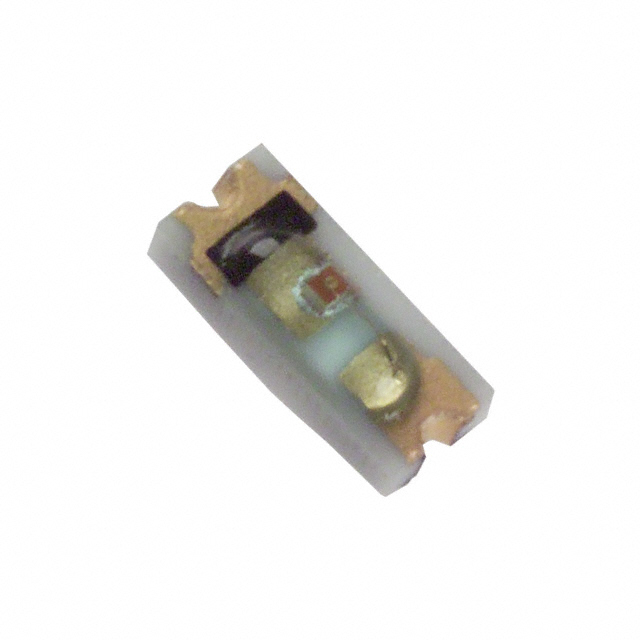

CCL-LX45GT
ActiveLumex Opto/Components Inc.
LED GREEN CLEAR SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CCL-LX45GT
ActiveLumex Opto/Components Inc.
LED GREEN CLEAR SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CCL-LX45GT |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 1.2 mm |
| Lens Color | Green |
| Lens Style | Oval with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 7 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.05 " |
| Supplier Device Package | SMD |
| Viewing Angle | 180 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Peak | 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.13 | |
| 10 | $ 1.42 | |||
| 100 | $ 1.09 | |||
| 500 | $ 1.09 | |||
| Digi-Reel® | 1 | $ 2.13 | ||
| 10 | $ 1.42 | |||
| 100 | $ 1.09 | |||
| 500 | $ 1.09 | |||
| Tape & Reel (TR) | 3000 | $ 1.09 | ||
Description
General part information
CCL-LX45 Series
Green LED Indication - Discrete 2.2V 2-SMD, No Lead
