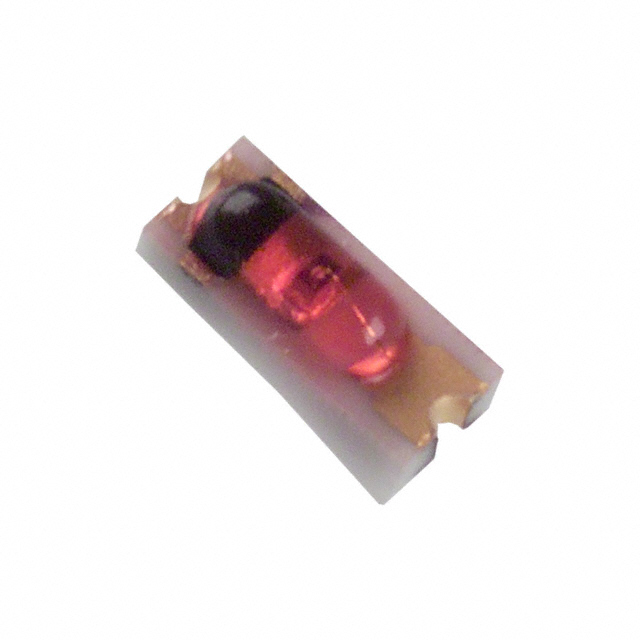

CCL-LX45IT

Active

Lumex Opto/Components Inc.

LED RED CLEAR SMD

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED RED CLEAR SMD

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Lens Transparency	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Configuration	Lens Style	Current - Test	Voltage - Forward (Vf) (Typ)	Lens Color	Wavelength - Peak	Viewing Angle	Color	Height (Max) [Max]	Millicandela Rating
Lumex Opto/Components Inc. CCL-LX45IT	2-SMD No Lead	Clear	SMD	3.2 mm	0.05 "	Surface Mount	Standard	Oval with Domed Top	20 mA	2.1 V	Red	635 nm	180 °	Red	1.2 mm
Lumex Opto/Components Inc. CCL-LX45GT	2-SMD No Lead	Clear	SMD	3.2 mm	0.05 "	Surface Mount	Standard	Oval with Domed Top	20 mA	2.2 V	Green	565 nm	180 °	Green	1.2 mm	7 mcd
Lumex Opto/Components Inc. CCL-LX45SRT	2-SMD No Lead	Clear	SMD	3.2 mm	0.05 "	Surface Mount	Standard	Oval with Domed Top	20 mA	1.8 V	Red	660 nm	180 °	Red	1.2 mm	8 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.03
	Digi-Reel®	1	$ 3.03
	Tape & Reel (TR)	12000	$ 1.10

General part information

Red LED Indication - Discrete 2.1V 2-SMD, No Lead
