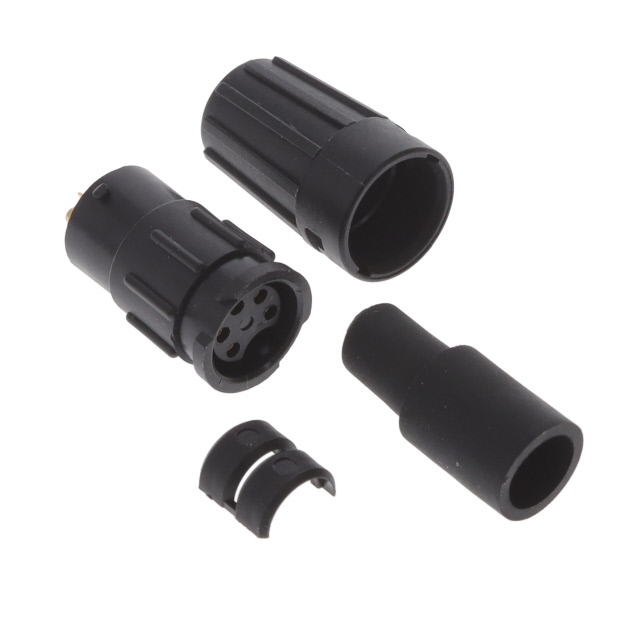

W8282-5SG-P-528
ActiveConxall/Switchcraft
MINI-CON-X INSTA-CLICK CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W8282-5SG-P-528
ActiveConxall/Switchcraft
MINI-CON-X INSTA-CLICK CONNECTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | W8282-5SG-P-528 |
|---|---|
| Applications | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Thermoplastic |
| Cable Opening [diameter] | 6.6 mm |
| Cable Opening [diameter] | 7.24 mm |
| Cable Opening [diameter] | 0.285 in, 0.26 in |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, UV Resistant, Backshell |
| Ingress Protection | IP68, IP66, IP67 |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Shielding | Unshielded |
| Voltage Rating | 300 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.62 | |
| 10 | $ 10.72 | |||
| 25 | $ 10.05 | |||
| 50 | $ 9.57 | |||
| 100 | $ 9.11 | |||
| 250 | $ 8.54 | |||
| 500 | $ 8.14 | |||
| 1000 | $ 7.75 | |||
Description
General part information
W8282-5 Series
5 Position Circular Connector Plug, Female Sockets Solder Cup
