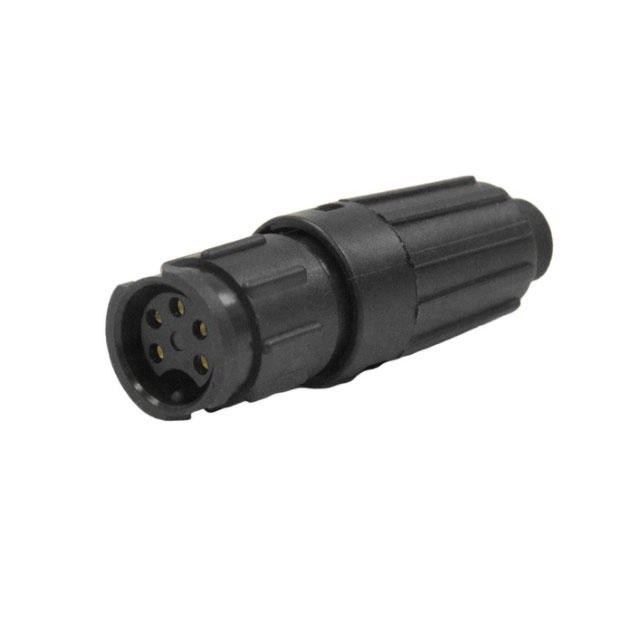

W8282-5SG-P-513

Active

Conxall/Switchcraft

MINI-CON-X INSTA-CLICK CONNECTOR

Search across all available documentation for this part.

Active

Conxall/Switchcraft

MINI-CON-X INSTA-CLICK CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	W8282-5SG-P-513

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Cable Opening [custom]	0.13 in, 0.15 in
Cable Opening [custom]	3.81 mm, 3.3 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Coupling Nut, UV Resistant, Backshell
Ingress Protection	IP68, IP66, IP67
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Polybutylene Terephthalate (PBT)
Shielding	Unshielded
Voltage Rating	300 VAC

Part	Shielding	Contact Finish - Mating	Applications	Voltage Rating	Backshell Material, Plating	Orientation	Fastening Type	Features	Shell Material	Color	Contact Material	Cable Opening [custom]	Cable Opening [custom]	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Insert Material	Mounting Type	Connector Type	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Primary Material
Conxall/Switchcraft W8282-5SG-P-513	Unshielded	Gold	Automotive Communication Systems Instrumentation	300 VAC	Thermoplastic	Keyed	Bayonet Lock	Backshell Coupling Nut UV Resistant	Polybutylene Terephthalate (PBT)	Black	Copper Alloy	0.13 in 0.15 in	3.3 mm 3.81 mm	IP66 IP67 IP68	85 °C	-40 °C	Varies by Wire Gauge	Thermoplastic	Free Hanging (In-Line)	Female Sockets Plug
Conxall/Switchcraft W8282-5SG-P-528	Unshielded	Gold	Automotive Communication Systems Instrumentation	300 VAC	Thermoplastic	Keyed	Bayonet Lock	Backshell Coupling Nut UV Resistant	Polybutylene Terephthalate (PBT)	Black	Copper Alloy			IP66 IP67 IP68	85 °C	-40 °C	Varies by Wire Gauge	Thermoplastic	Free Hanging (In-Line)	Female Sockets Plug	6.6 mm	7.24 mm	0.26 in 0.285 in	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Position Circular Connector Plug, Female Sockets Solder Cup
