LHB-10-SA1

Active

Adam Tech

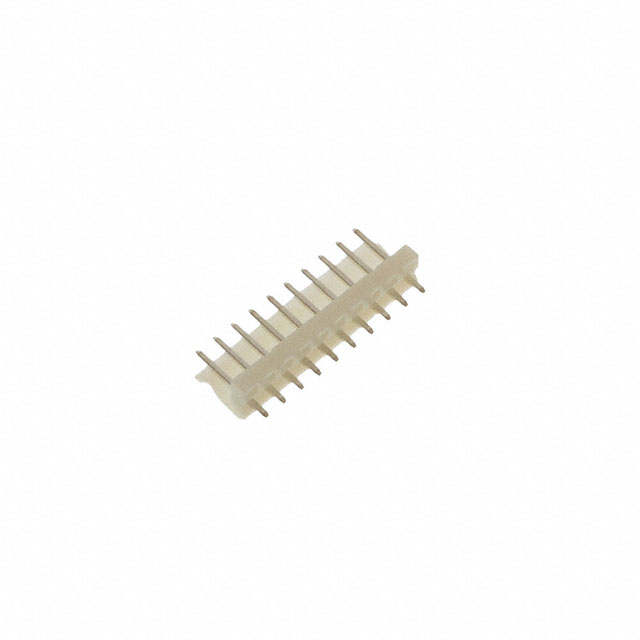

CONN HEADER VERT 10POS 3.96MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER VERT 10POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	LHB-10-SA1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	1.04 mm
Contact Length - Mating	0.041 in
Contact Length - Post	0.145 in
Contact Length - Post	3.68 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height	12.8 mm
Insulation Height	0.504 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overall Contact Length	0.69 in
Overall Contact Length	17.53 mm
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Contact Type	Insulation Color	Pitch - Mating	Pitch - Mating	Connector Type	Current Rating (Amps)	Number of Positions Loaded	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Style	Voltage Rating	Number of Positions	Termination	Fastening Type	Contact Material	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Insulation Material	Material Flammability Rating	Mounting Type	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length
Adam Tech LHB-10-SB1	Male Pin	White	0.156 in	3.96 mm	Header	5 A	All	1	-25 °C	85 °C	Board to Cable/Wire	250 VAC	10	Solder	Friction Lock	Brass	Shrouded - 1 Wall	0.134 in	3.4 mm	Square	Polyamide (PA66) Nylon 6/6	UL94 V-2	Through Hole Right Angle	Tin	0.445 in	11.3 mm
Adam Tech LHB-10-SA1	Male Pin	White	0.156 in	3.96 mm	Header	5 A	All	1	-25 °C	85 °C	Board to Cable/Wire	250 VAC	10	Solder	Friction Lock	Brass	Shrouded - 1 Wall			Square	Polyamide (PA66) Nylon 6/6	UL94 V-2	Through Hole	Tin	0.041 in	1.04 mm	0.145 in	3.68 mm	12.8 mm	0.504 in	0.69 in	17.53 mm
