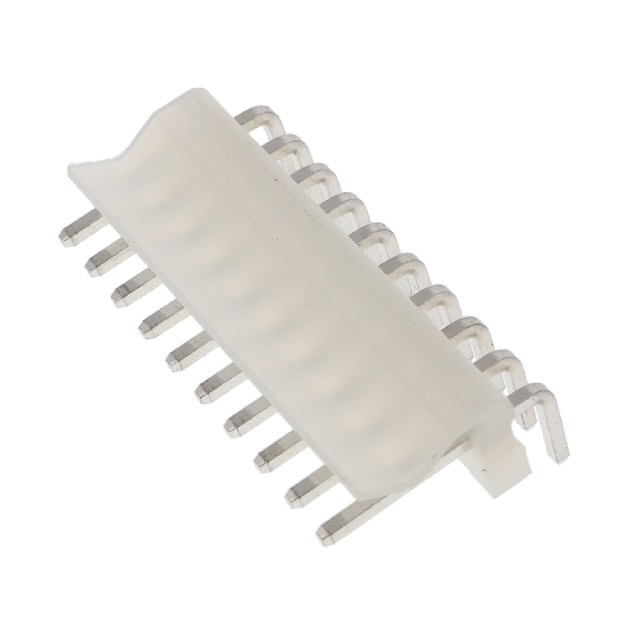

LHB-10-SB1

Active

Adam Tech

CONN HEADER R/A 10POS 3.96MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER R/A 10POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	LHB-10-SB1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.445 in
Contact Length - Mating	11.3 mm
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Contact Type	Insulation Color	Pitch - Mating	Pitch - Mating	Connector Type	Current Rating (Amps)	Number of Positions Loaded	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Style	Voltage Rating	Number of Positions	Termination	Fastening Type	Contact Material	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Insulation Material	Material Flammability Rating	Mounting Type	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length
Adam Tech LHB-10-SB1	Male Pin	White	0.156 in	3.96 mm	Header	5 A	All	1	-25 °C	85 °C	Board to Cable/Wire	250 VAC	10	Solder	Friction Lock	Brass	Shrouded - 1 Wall	0.134 in	3.4 mm	Square	Polyamide (PA66) Nylon 6/6	UL94 V-2	Through Hole Right Angle	Tin	0.445 in	11.3 mm
Adam Tech LHB-10-SA1	Male Pin	White	0.156 in	3.96 mm	Header	5 A	All	1	-25 °C	85 °C	Board to Cable/Wire	250 VAC	10	Solder	Friction Lock	Brass	Shrouded - 1 Wall			Square	Polyamide (PA66) Nylon 6/6	UL94 V-2	Through Hole	Tin	0.041 in	1.04 mm	0.145 in	3.68 mm	12.8 mm	0.504 in	0.69 in	17.53 mm
