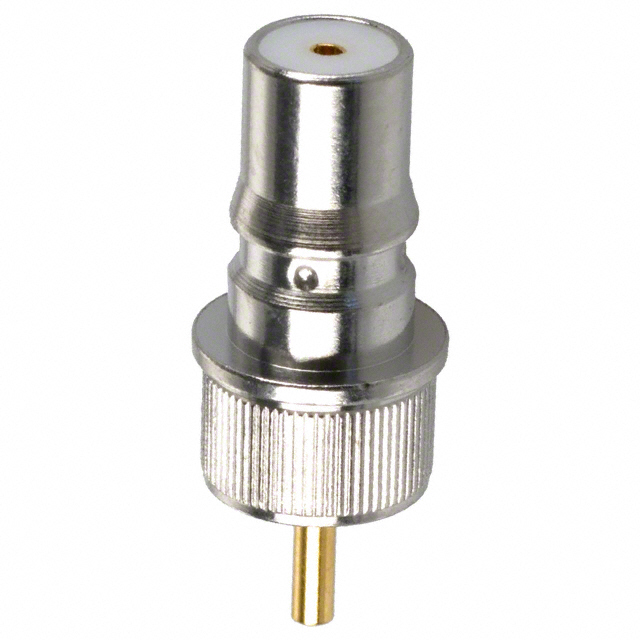

930-105J-51S

Active

Amphenol RF

CONN QMA RCPT STR 50 OHM PUSH

Search across all available documentation for this part.

Active

Amphenol RF

CONN QMA RCPT STR 50 OHM PUSH

Technical Specifications

Parameters and characteristics for this part

Specification	930-105J-51S

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Receptacle, Female Socket
Contact Termination	Push On
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	480 V

Part	Shield Termination	Body Finish	Number of Ports	Connector Type	Frequency - Max [Max]	Cable Group	Cable Group [Min]	Cable Group [Max]	Voltage Rating	Center Contact Plating	Body Material	Mounting Type	Center Contact Material	Dielectric Material	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Housing Color	Fastening Type	Includes	Mating Cycles
Amphenol RF 930-104P-51A	Solder	Gold	1	Male Pin Plug	6000 MHz	RG-405 Semi Rigid	0.085 in	0.086 in	480 V	Gold	Brass	Free Hanging (In-Line) Right Angle	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	-65 ░C	165 °C	Solder	Gold	Snap-On
Amphenol RF 930-106P-51A	Crimp	White Bronze	1	Male Pin Plug	3 GHz	Belden 9258 LMR-240			480 V	Gold	Brass	Free Hanging (In-Line) Right Angle	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	-65 ░C	165 °C	Solder	Silver	Snap-On	1 Connector 1 End Cap 1 Ferrule
Amphenol RF 930-105J-51S	Solder	White Bronze	1	Female Socket Receptacle	6000 MHz				480 V	Gold	Brass	Free Hanging (In-Line)	Beryllium Copper	Polytetrafluoroethylene (PTFE)	50 Ohms	-40 °C	80 C	Push On	Silver	Snap-On		500
Amphenol RF 930-103P-51A	Solder	Gold	1	Male Pin Plug	6000 MHz				480 V	Gold	Brass	Free Hanging (In-Line) Right Angle	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	-65 ░C	165 °C	Solder	Gold	Snap-On
Amphenol RF 930-102J-51P	Solder	Gold	1	Female Socket Receptacle	6000 MHz				480 V	Gold	Brass	Through Hole	Beryllium Copper	Polytetrafluoroethylene (PTFE)	50 Ohms	-40 °C	80 C	Solder	Gold	Snap-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

QMA Connector Receptacle, Female Socket 50 Ohms Free Hanging (In-Line) Push On
