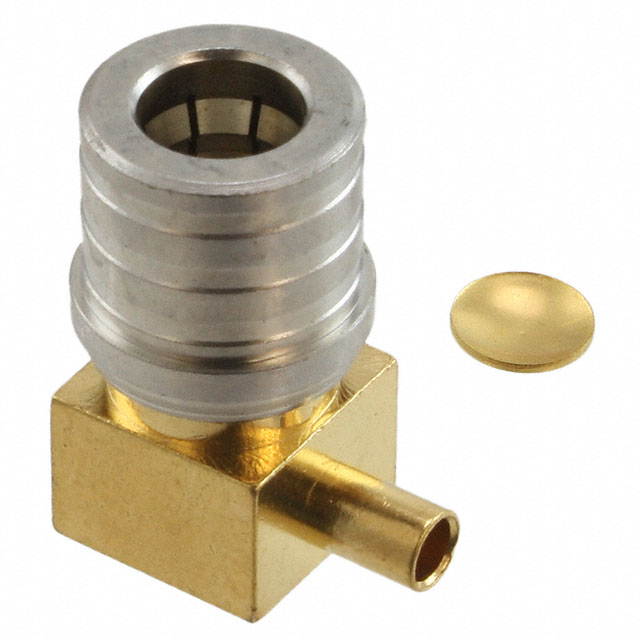

930-104P-51A

Active

Amphenol RF

CONN QMA PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN QMA PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	930-104P-51A

Body Finish	Gold
Body Material	Brass
Cable Group	Semi Rigid, RG-405
Cable Group [Max]	0.086 in
Cable Group [Min]	0.085 in
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	480 V

Part	Shield Termination	Body Finish	Number of Ports	Connector Type	Frequency - Max [Max]	Cable Group	Cable Group [Min]	Cable Group [Max]	Voltage Rating	Center Contact Plating	Body Material	Mounting Type	Center Contact Material	Dielectric Material	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Housing Color	Fastening Type	Includes	Mating Cycles
Amphenol RF 930-104P-51A	Solder	Gold	1	Male Pin Plug	6000 MHz	RG-405 Semi Rigid	0.085 in	0.086 in	480 V	Gold	Brass	Free Hanging (In-Line) Right Angle	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	-65 ░C	165 °C	Solder	Gold	Snap-On
Amphenol RF 930-106P-51A	Crimp	White Bronze	1	Male Pin Plug	3 GHz	Belden 9258 LMR-240			480 V	Gold	Brass	Free Hanging (In-Line) Right Angle	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	-65 ░C	165 °C	Solder	Silver	Snap-On	1 Connector 1 End Cap 1 Ferrule
Amphenol RF 930-105J-51S	Solder	White Bronze	1	Female Socket Receptacle	6000 MHz				480 V	Gold	Brass	Free Hanging (In-Line)	Beryllium Copper	Polytetrafluoroethylene (PTFE)	50 Ohms	-40 °C	80 C	Push On	Silver	Snap-On		500
Amphenol RF 930-103P-51A	Solder	Gold	1	Male Pin Plug	6000 MHz				480 V	Gold	Brass	Free Hanging (In-Line) Right Angle	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	-65 ░C	165 °C	Solder	Gold	Snap-On
Amphenol RF 930-102J-51P	Solder	Gold	1	Female Socket Receptacle	6000 MHz				480 V	Gold	Brass	Through Hole	Beryllium Copper	Polytetrafluoroethylene (PTFE)	50 Ohms	-40 °C	80 C	Solder	Gold	Snap-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

QMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
