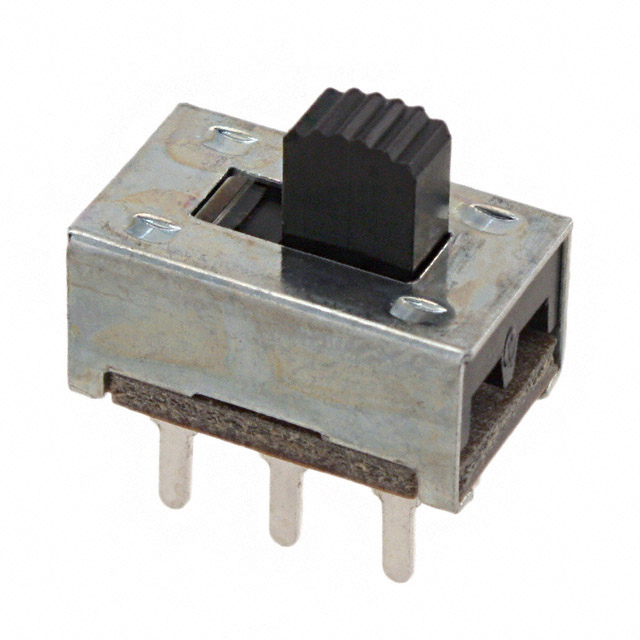

GF-126-0159

Active

CW Industries

SWITCH SLIDE DPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GF-126-0159

Active

CW Industries

SWITCH SLIDE DPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GF-126-0159

Actuator Length [x]	5.08 mm
Actuator Material	Polyamide (PA66), Nylon 6/6
Actuator Type	Standard
Circuit	DPDT
Contact Finish	Silver
Contact Material	Copper
Contact Timing	Not Specified
Current Rating (Amps)	500 mA, 3 A
Electrical Life	6000 Cycles
Mechanical Life	10000 Steps
Mounting Type	Through Hole
Operating Temperature [Max]	104 °C
Operating Temperature [Min]	-10 °C
Switch Function	On-On
Switch Travel	3.61 mm
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

GF-126 Series

Part	Current Rating (Amps)	Voltage Rating - DC	Switch Function	Actuator Type	Actuator Length [x]	Contact Finish	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Electrical Life	Circuit	Switch Travel	Mechanical Life	Contact Material	Termination Style	Contact Timing	Mounting Type
CW Industries GF-126-3013	3 A 500 mA	125 VDC	On-On	Standard	5.08 mm	Silver	Nylon 6/6 Polyamide (PA66)	104 °C	-10 °C	125 V	6000 Cycles	DPDT	3.61 mm	10000 Steps	Copper	PC Pin	Not Specified
CW Industries GF-126-0119	500 mA	125 VDC	On-On	Standard	5.08 mm	Silver	Nylon 6/6 Polyamide (PA66)	104 °C	-10 °C	125 V	6000 Cycles	DPDT	3.61 mm	10000 Steps	Copper	PC Pin	Not Specified	Through Hole
CW Industries GF-126-0327	8.5 A 500 mA	125 VDC	On-On	Standard	5.08 mm	Silver	Nylon 6/6 Polyamide (PA66)	104 °C	-10 °C	125 V	6000 Cycles	DPDT	3.61 mm	10000 Steps	Copper	PC Pin	Not Specified	Through Hole
CW Industries GF-126-0028	500 mA	125 VDC	On-On	Standard	5.08 mm	Silver	Nylon 6/6 Polyamide (PA66)	104 °C	-10 °C	125 V	6000 Cycles	DPDT	3.61 mm	10000 Steps	Copper	PC Pin	Not Specified	Through Hole
CW Industries GF-126-0007	500 mA	125 VDC	On-On	Standard	5.08 mm	Silver	Nylon 6/6 Polyamide (PA66)	104 °C	-10 °C	125 V	6000 Cycles	DPDT	3.61 mm	10000 Steps	Copper	Solder Lug	Not Specified
CW Industries GF-126-0234	500 mA	125 VDC	On-On (Line Voltage Selector)	Screwdriver Slot	1.27 mm	Silver	Nylon 6/6 Polyamide (PA66)	104 °C	-10 °C	125 V	6000 Cycles	DPDT	3.61 mm	10000 Steps	Copper	PC Pin	Not Specified	Through Hole
CW Industries GF-126-0331	3 A 500 mA	125 VDC	On-On	Standard	5.08 mm	Silver	Nylon 6/6 Polyamide (PA66)	104 °C	-10 °C	125 V	6000 Cycles	DPDT	3.61 mm	10000 Steps	Copper	PC Pin	Not Specified	Through Hole
CW Industries GF-126-0313	8.5 A 500 mA	125 VDC	On-On	Standard	11.5 mm	Silver	Nylon 6/6 Polyamide (PA66)	104 °C	-10 °C	125 V	6000 Cycles	DPDT	3.61 mm	10000 Steps	Copper	PC Pin	Not Specified	Through Hole
CW Industries GF-126-0159	3 A 500 mA	125 VDC	On-On	Standard	5.08 mm	Silver	Nylon 6/6 Polyamide (PA66)	104 °C	-10 °C	125 V	6000 Cycles	DPDT	3.61 mm	10000 Steps	Copper	PC Pin	Not Specified	Through Hole
CW Industries GF-126-0153	500 mA	125 VDC	On-On	Standard	5.08 mm	Silver	Nylon 6/6 Polyamide (PA66)	104 °C	-10 °C	125 V	6000 Cycles	DPDT	3.61 mm	10000 Steps	Copper	PC Pin	Not Specified	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.78
		10	$ 1.51
		25	$ 1.40
		100	$ 1.25
		250	$ 1.15
		500	$ 1.09
		1000	$ 1.04
		2500	$ 0.97
		5000	$ 0.93

Description

General part information

GF-126 Series

Slide Switch DPDT Through Hole
