GF-126-0313
ActiveCW Industries

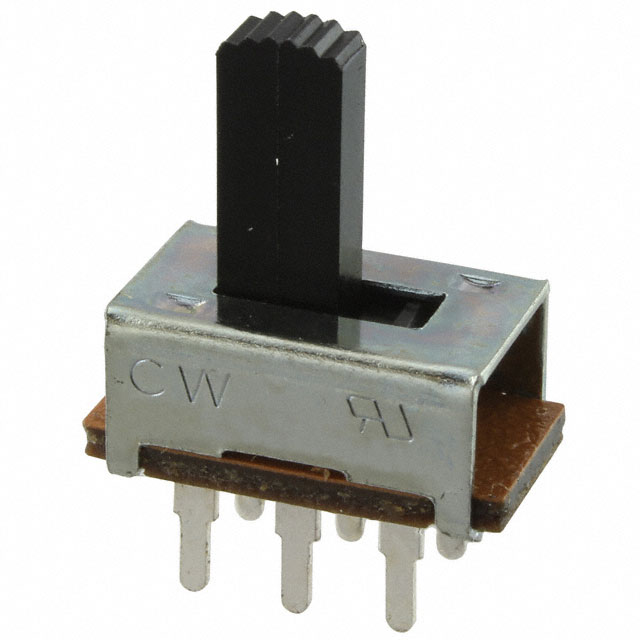

SWITCH SLIDE DPDT 8.5A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GF-126-0313
ActiveCW Industries
SWITCH SLIDE DPDT 8.5A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GF-126-0313 |
|---|---|
| Actuator Length [x] | 11.5 mm |
| Actuator Material | Polyamide (PA66), Nylon 6/6 |
| Actuator Type | Standard |
| Circuit | DPDT |
| Contact Finish | Silver |
| Contact Material | Copper |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 8.5 A, 500 mA |
| Electrical Life | 6000 Cycles |
| Mechanical Life | 10000 Steps |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 104 °C |
| Operating Temperature [Min] | -10 °C |
| Switch Function | On-On |
| Switch Travel | 3.61 mm |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
GF-126 Series
| Part | Current Rating (Amps) | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length [x] | Contact Finish | Actuator Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Electrical Life | Circuit | Switch Travel | Mechanical Life | Contact Material | Termination Style | Contact Timing | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CW Industries | 3 A 500 mA | 125 VDC | On-On | Standard | 5.08 mm | Silver | Nylon 6/6 Polyamide (PA66) | 104 °C | -10 °C | 125 V | 6000 Cycles | DPDT | 3.61 mm | 10000 Steps | Copper | PC Pin | Not Specified | |
CW Industries | 500 mA | 125 VDC | On-On | Standard | 5.08 mm | Silver | Nylon 6/6 Polyamide (PA66) | 104 °C | -10 °C | 125 V | 6000 Cycles | DPDT | 3.61 mm | 10000 Steps | Copper | PC Pin | Not Specified | Through Hole |
CW Industries | 8.5 A 500 mA | 125 VDC | On-On | Standard | 5.08 mm | Silver | Nylon 6/6 Polyamide (PA66) | 104 °C | -10 °C | 125 V | 6000 Cycles | DPDT | 3.61 mm | 10000 Steps | Copper | PC Pin | Not Specified | Through Hole |
CW Industries | 500 mA | 125 VDC | On-On | Standard | 5.08 mm | Silver | Nylon 6/6 Polyamide (PA66) | 104 °C | -10 °C | 125 V | 6000 Cycles | DPDT | 3.61 mm | 10000 Steps | Copper | PC Pin | Not Specified | Through Hole |
CW Industries | 500 mA | 125 VDC | On-On | Standard | 5.08 mm | Silver | Nylon 6/6 Polyamide (PA66) | 104 °C | -10 °C | 125 V | 6000 Cycles | DPDT | 3.61 mm | 10000 Steps | Copper | Solder Lug | Not Specified | |
CW Industries | 500 mA | 125 VDC | On-On (Line Voltage Selector) | Screwdriver Slot | 1.27 mm | Silver | Nylon 6/6 Polyamide (PA66) | 104 °C | -10 °C | 125 V | 6000 Cycles | DPDT | 3.61 mm | 10000 Steps | Copper | PC Pin | Not Specified | Through Hole |
CW Industries | 3 A 500 mA | 125 VDC | On-On | Standard | 5.08 mm | Silver | Nylon 6/6 Polyamide (PA66) | 104 °C | -10 °C | 125 V | 6000 Cycles | DPDT | 3.61 mm | 10000 Steps | Copper | PC Pin | Not Specified | Through Hole |
CW Industries | 8.5 A 500 mA | 125 VDC | On-On | Standard | 11.5 mm | Silver | Nylon 6/6 Polyamide (PA66) | 104 °C | -10 °C | 125 V | 6000 Cycles | DPDT | 3.61 mm | 10000 Steps | Copper | PC Pin | Not Specified | Through Hole |
CW Industries | 3 A 500 mA | 125 VDC | On-On | Standard | 5.08 mm | Silver | Nylon 6/6 Polyamide (PA66) | 104 °C | -10 °C | 125 V | 6000 Cycles | DPDT | 3.61 mm | 10000 Steps | Copper | PC Pin | Not Specified | Through Hole |
CW Industries | 500 mA | 125 VDC | On-On | Standard | 5.08 mm | Silver | Nylon 6/6 Polyamide (PA66) | 104 °C | -10 °C | 125 V | 6000 Cycles | DPDT | 3.61 mm | 10000 Steps | Copper | PC Pin | Not Specified | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 1.09 | |
Description
General part information
GF-126 Series
Slide Switch DPDT Through Hole
