TMC2208-EVAL-KIT

Active

Analog Devices Inc./Maxim Integrated

EVAL KIT FOR TMC2208

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

EVAL KIT FOR TMC2208

Technical Specifications

Parameters and characteristics for this part

Part	Supplied Contents	Utilized IC / Part	Contents	Type	Voltage - Load [Min]	Voltage - Load [Max]	Applications	Package / Case	Supplier Device Package	Motor Type - Stepper	Technology	Interface	Current - Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Output Configuration	Step Resolution [Max]	Step Resolution [Min]	Function	Operating Temperature [Min]	Operating Temperature [Max]	Motor Type - AC, DC
Analog Devices Inc./Maxim Integrated TMC2208SILENTSTEPSTICK	Board(s)	TMC2208	Board(s)	Power Management
Analog Devices Inc./Maxim Integrated TMC2208-EVAL	Board(s)	TMC2208	Board(s)	Power Management
Analog Devices Inc./Maxim Integrated TMC2208-LA-T					5.5 V	36 V	General Purpose	28-VFQFN Exposed Pad	28-QFN (5x5)	Bipolar	Power MOSFET	Logic UART	1.2 A	36 V	5.5 V	Surface Mount	Half Bridge (4)	1	0.00390625	Driver - Fully Integrated Control and Power Stage	-40 °C	125 ¯C
Analog Devices Inc./Maxim Integrated TMC2208-EVAL-KIT	Board(s)	TMC2208	Board(s)	Power Management
Analog Devices Inc./Maxim Integrated TMC2208-LA					5.5 V	36 V	General Purpose	28-VFQFN Exposed Pad	28-QFN (5x5)	Bipolar	Power MOSFET		1.2 A	36 V	5.5 V	Surface Mount	Half Bridge (2)	1	0.00390625	Driver - Fully Integrated Control and Power Stage	-40 °C	125 ¯C	Brushed DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 133.24

General part information

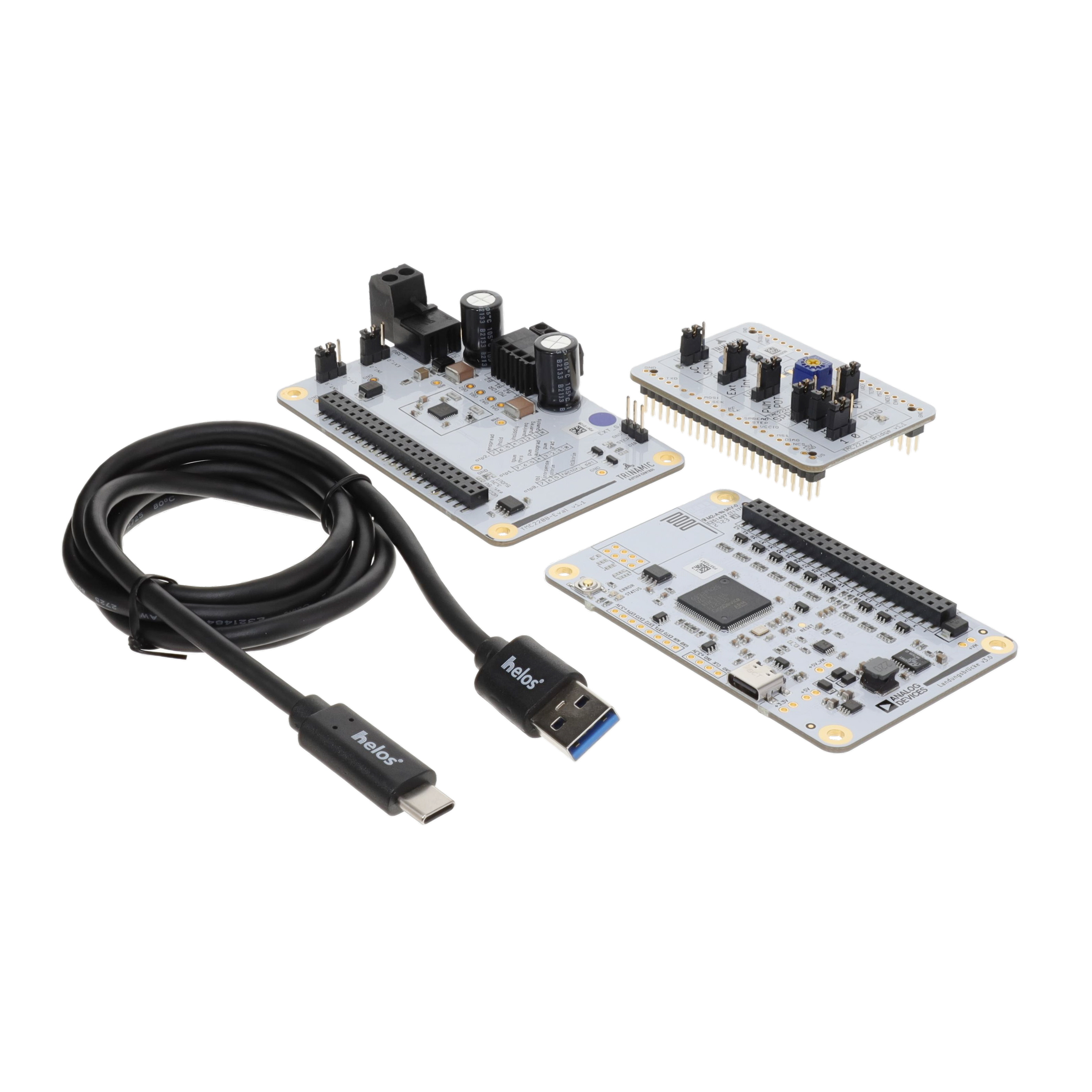

TMC2208 Motor Controller/Driver, Stepper Power Management Evaluation Board
