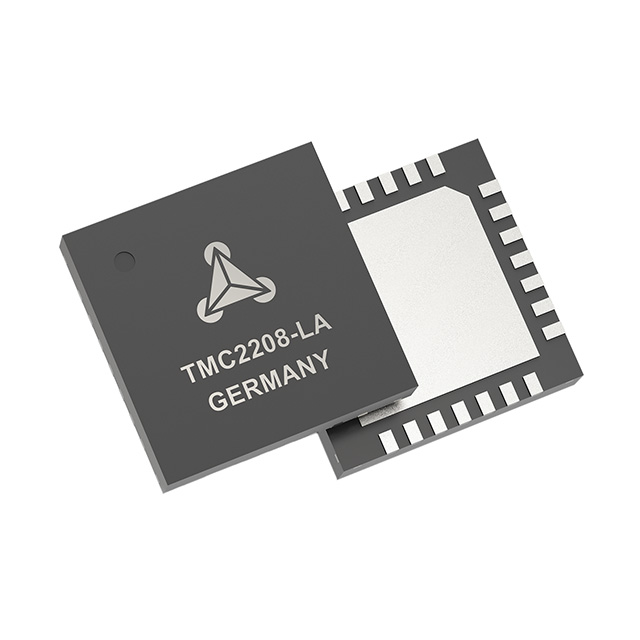

TMC2208-LA-T
ActiveAnalog Devices Inc./Maxim Integrated
IC MTR DRV BIPOLAR 5.5-36V 28QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMC2208-LA-T
ActiveAnalog Devices Inc./Maxim Integrated
IC MTR DRV BIPOLAR 5.5-36V 28QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMC2208-LA-T |
|---|---|
| Applications | General Purpose |
| Current - Output | 1.2 A |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | Logic, UART |
| Motor Type - Stepper | Bipolar |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Half Bridge (4) |
| Package / Case | 28-VFQFN Exposed Pad |
| Step Resolution [Max] | 1 |
| Step Resolution [Min] | 0.00390625 |
| Supplier Device Package | 28-QFN (5x5) |
| Technology | Power MOSFET |
| Voltage - Load [Max] | 36 V |
| Voltage - Load [Min] | 5.5 V |
| Voltage - Supply [Max] | 36 V |
| Voltage - Supply [Min] | 5.5 V |
TMC2208 Series
| Part | Supplied Contents | Utilized IC / Part | Contents | Type | Voltage - Load [Min] | Voltage - Load [Max] | Applications | Package / Case | Supplier Device Package | Motor Type - Stepper | Technology | Interface | Current - Output | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Output Configuration | Step Resolution [Max] | Step Resolution [Min] | Function | Operating Temperature [Min] | Operating Temperature [Max] | Motor Type - AC, DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated | Board(s) | TMC2208 | Board(s) | Power Management | |||||||||||||||||||
Analog Devices Inc./Maxim Integrated | Board(s) | TMC2208 | Board(s) | Power Management | |||||||||||||||||||
Analog Devices Inc./Maxim Integrated | 5.5 V | 36 V | General Purpose | 28-VFQFN Exposed Pad | 28-QFN (5x5) | Bipolar | Power MOSFET | Logic UART | 1.2 A | 36 V | 5.5 V | Surface Mount | Half Bridge (4) | 1 | 0.00390625 | Driver - Fully Integrated Control and Power Stage | -40 °C | 125 ¯C | |||||
Analog Devices Inc./Maxim Integrated | Board(s) | TMC2208 | Board(s) | Power Management | |||||||||||||||||||
Analog Devices Inc./Maxim Integrated | 5.5 V | 36 V | General Purpose | 28-VFQFN Exposed Pad | 28-QFN (5x5) | Bipolar | Power MOSFET | 1.2 A | 36 V | 5.5 V | Surface Mount | Half Bridge (2) | 1 | 0.00390625 | Driver - Fully Integrated Control and Power Stage | -40 °C | 125 ¯C | Brushed DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.65 | |
| 10 | $ 3.09 | |||
| 25 | $ 2.68 | |||
| 100 | $ 2.23 | |||
| 250 | $ 2.00 | |||
| 500 | $ 1.87 | |||
| 1000 | $ 1.76 | |||
| 2500 | $ 1.64 | |||
| Digi-Reel® | 1 | $ 4.65 | ||
| 10 | $ 3.09 | |||
| 25 | $ 2.68 | |||
| 100 | $ 2.23 | |||
| 250 | $ 2.00 | |||
| 500 | $ 1.87 | |||
| 1000 | $ 1.76 | |||
| 2500 | $ 1.64 | |||
| Tape & Reel (TR) | 6000 | $ 1.56 | ||
Description
General part information
TMC2208 Series
Bipolar Motor Driver Power MOSFET Logic, UART 28-QFN (5x5)
