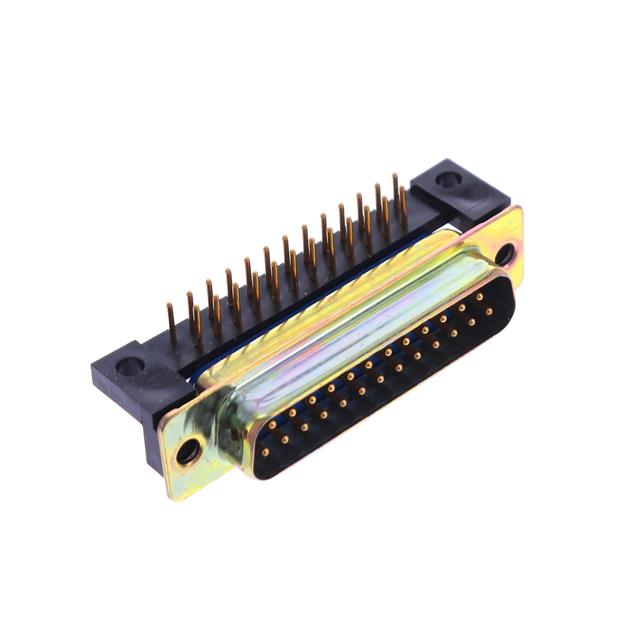

M24308/24-33F

Unknown

Amphenol Interconnect India

DSUB CONN,R/ANGLE, PLUG, CADMIUM

Search across all available documentation for this part.

Unknown

Amphenol Interconnect India

DSUB CONN,R/ANGLE, PLUG, CADMIUM

Technical Specifications

Parameters and characteristics for this part

Specification	M24308/24-33F

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	Natural
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polyester, Glass Filled
Features	Mounting Brackets
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Yellow Cadmium Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	20 AWG

Part	Connector Style	Contact Finish	Current Rating (Amps)	Material Flammability Rating	Contact Type	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Shell Material, Finish	Connector Type	Color	Contact Material	Dielectric Material	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Backset Spacing	Backset Spacing	Number of Rows	Features
Amphenol Interconnect India M24308/24-65F	D-Sub High Density	Gold	5 A	UL94 V-0	Signal	28 AWG	22 AWG	Solder	Steel Yellow Cadmium Plated	Male Pins Plug	Natural	Copper Alloy	Polyester Glass Filled	Housing/Shell (Unthreaded)	-55 °C	125 °C	78	Panel Mount Through Hole
Amphenol Interconnect India M24308/24-33F	D-Sub	Gold	7.5 A	UL94 V-0	Signal	26 AWG	20 AWG	Solder	Steel Yellow Cadmium Plated	Male Pins Plug	Natural	Copper Alloy	Polyester Glass Filled	Housing/Shell (Unthreaded)	-55 °C	125 °C		Panel Mount Right Angle Through Hole	B DB	3	0.283 in	7.2 mm	2	Mounting Brackets
Amphenol Interconnect India M24308/24-25F	D-Sub	Gold	7.5 A	UL94 V-0	Signal	26 AWG	20 AWG	Solder	Steel Yellow Cadmium Plated	Male Pins Plug	Natural	Copper Alloy	Polyester Glass Filled	Housing/Shell (Unthreaded)	-55 °C	125 °C	9	Panel Mount Right Angle Through Hole	DE E	1	0.283 in	7.2 mm	2	Mounting Brackets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Sub Plug, Male Pins Connector
