M24308/24-65F

Active

Amphenol Interconnect India

DSUB CONN,STRAIGHT, PLUG, CADMIU

Search across all available documentation for this part.

Active

Amphenol Interconnect India

DSUB CONN,STRAIGHT, PLUG, CADMIU

Technical Specifications

Parameters and characteristics for this part

Specification	M24308/24-65F

Color	Natural
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyester, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	78
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Yellow Cadmium Plated, Steel
Termination	Solder
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	22 AWG

Part	Connector Style	Contact Finish	Current Rating (Amps)	Material Flammability Rating	Contact Type	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Shell Material, Finish	Connector Type	Color	Contact Material	Dielectric Material	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Backset Spacing	Backset Spacing	Number of Rows	Features
Amphenol Interconnect India M24308/24-65F	D-Sub High Density	Gold	5 A	UL94 V-0	Signal	28 AWG	22 AWG	Solder	Steel Yellow Cadmium Plated	Male Pins Plug	Natural	Copper Alloy	Polyester Glass Filled	Housing/Shell (Unthreaded)	-55 °C	125 °C	78	Panel Mount Through Hole
Amphenol Interconnect India M24308/24-33F	D-Sub	Gold	7.5 A	UL94 V-0	Signal	26 AWG	20 AWG	Solder	Steel Yellow Cadmium Plated	Male Pins Plug	Natural	Copper Alloy	Polyester Glass Filled	Housing/Shell (Unthreaded)	-55 °C	125 °C		Panel Mount Right Angle Through Hole	B DB	3	0.283 in	7.2 mm	2	Mounting Brackets
Amphenol Interconnect India M24308/24-25F	D-Sub	Gold	7.5 A	UL94 V-0	Signal	26 AWG	20 AWG	Solder	Steel Yellow Cadmium Plated	Male Pins Plug	Natural	Copper Alloy	Polyester Glass Filled	Housing/Shell (Unthreaded)	-55 °C	125 °C	9	Panel Mount Right Angle Through Hole	DE E	1	0.283 in	7.2 mm	2	Mounting Brackets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

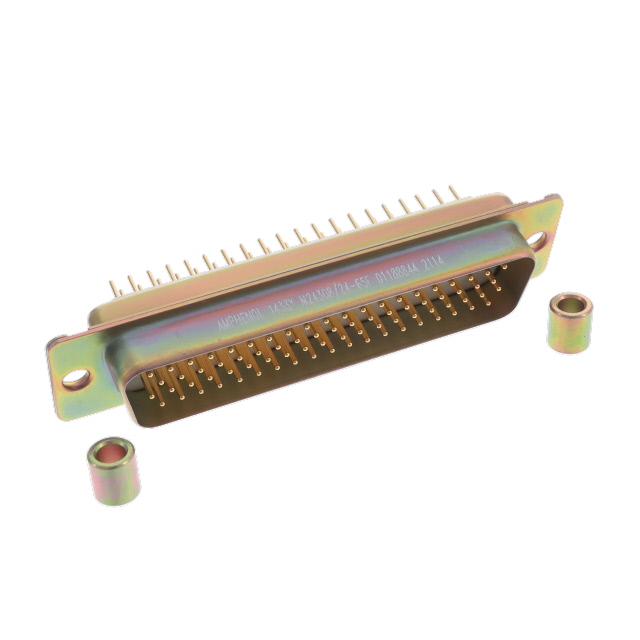

78 Position D-Sub, High Density Plug, Male Pins Connector
