09140033050

Active

HARTING Technology Group

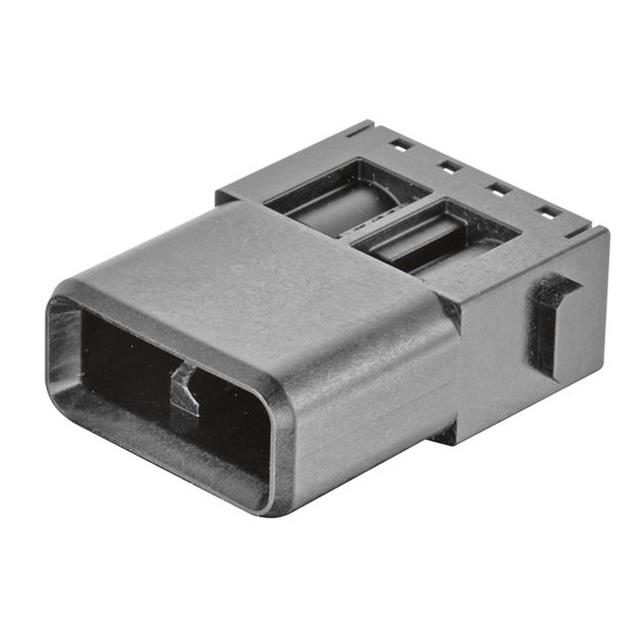

CONNECTOR ACCESSORY, GUIDING DUMMY MODULE, HARTING HAN-MODULAR SERIES HEAVY DUTY CONNECTORS

Search across all available documentation for this part.

Active

HARTING Technology Group

CONNECTOR ACCESSORY, GUIDING DUMMY MODULE, HARTING HAN-MODULAR SERIES HEAVY DUTY CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Specification	09140033050

Accessory Type	Dummy Module
For Use With/Related Products	Han-Modular® Modules
Specifications	Male

Part	Color	Material Flammability Rating	Voltage Rating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Termination Style	Contact Type	Gender	Current Rating (Amps)	For Use With/Related Products	Accessory Type	Specifications
HARTING Technology Group 09140033001	Gray	UL94 V-0	600 V	Module without Contacts	125 °C	-40 °C	Polycarbonate (PC)	Crimp	Han® C	Male	32 A
HARTING Technology Group 09140033152	Gray	UL94 V-0	500 V	Module without Contacts	125 °C	-40 °C	Polycarbonate (PC)	Crimp	Han® E	Female	16 A
HARTING Technology Group 09140033101	Gray	UL94 V-0	600 V	Module without Contacts	125 °C	-40 °C	Polycarbonate (PC)	Crimp	Han® C	Female	32 A
HARTING Technology Group 09140033102	Gray	UL94 V-0	600 V	Module without Contacts	125 °C	-40 °C	Polycarbonate (PC)	Crimp	Han® C	Female	32 A
HARTING Technology Group 09140033050												Han-Modular® Modules	Dummy Module	Male
HARTING Technology Group 09140033103	Gray	UL94 V-0	500 V	Module without Contacts	125 °C	-40 °C	Polycarbonate (PC)	Crimp	Han® C	Female	40 A
HARTING Technology Group 09140033150												Han-Modular® Modules	Dummy Module	Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Dummy Module
