09140033152
ActiveHARTING Technology Group

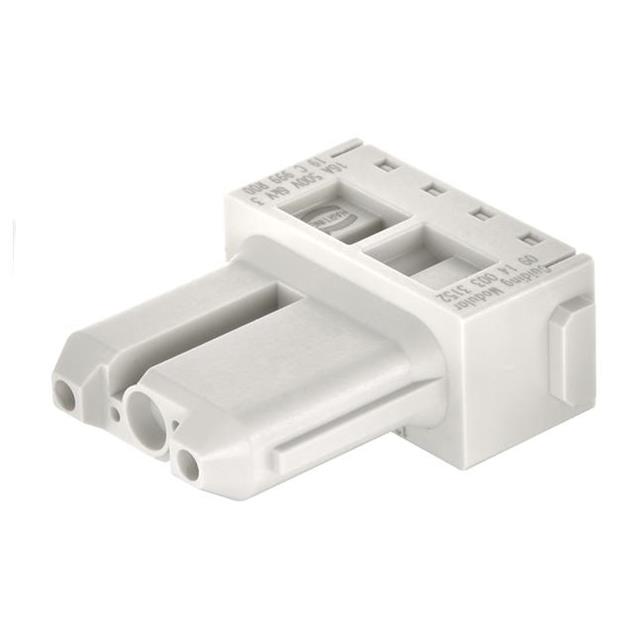

HEAVY DUTY CONNECTOR, HAN-MODULAR SERIES, MODULE, 2 CONTACTS, RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
09140033152
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, HAN-MODULAR SERIES, MODULE, 2 CONTACTS, RECEPTACLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 09140033152 |
|---|---|
| Color | Gray |
| Connector Type | Module without Contacts |
| Contact Type | Han® E |
| Current Rating (Amps) | 16 A |
| Gender | Female |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Crimp |
| Voltage Rating | 500 V |
09140033 Series
| Part | Color | Material Flammability Rating | Voltage Rating | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Termination Style | Contact Type | Gender | Current Rating (Amps) | For Use With/Related Products | Accessory Type | Specifications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HARTING Technology Group | Gray | UL94 V-0 | 600 V | Module without Contacts | 125 °C | -40 °C | Polycarbonate (PC) | Crimp | Han® C | Male | 32 A | |||
HARTING Technology Group | Gray | UL94 V-0 | 500 V | Module without Contacts | 125 °C | -40 °C | Polycarbonate (PC) | Crimp | Han® E | Female | 16 A | |||
HARTING Technology Group | Gray | UL94 V-0 | 600 V | Module without Contacts | 125 °C | -40 °C | Polycarbonate (PC) | Crimp | Han® C | Female | 32 A | |||
HARTING Technology Group | Gray | UL94 V-0 | 600 V | Module without Contacts | 125 °C | -40 °C | Polycarbonate (PC) | Crimp | Han® C | Female | 32 A | |||
HARTING Technology Group | Han-Modular® Modules | Dummy Module | Male | |||||||||||
HARTING Technology Group | Gray | UL94 V-0 | 500 V | Module without Contacts | 125 °C | -40 °C | Polycarbonate (PC) | Crimp | Han® C | Female | 40 A | |||
HARTING Technology Group | Han-Modular® Modules | Dummy Module | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
09140033 Series
Female Module without Contacts Gray Position Crimp
Documents
Technical documentation and resources
