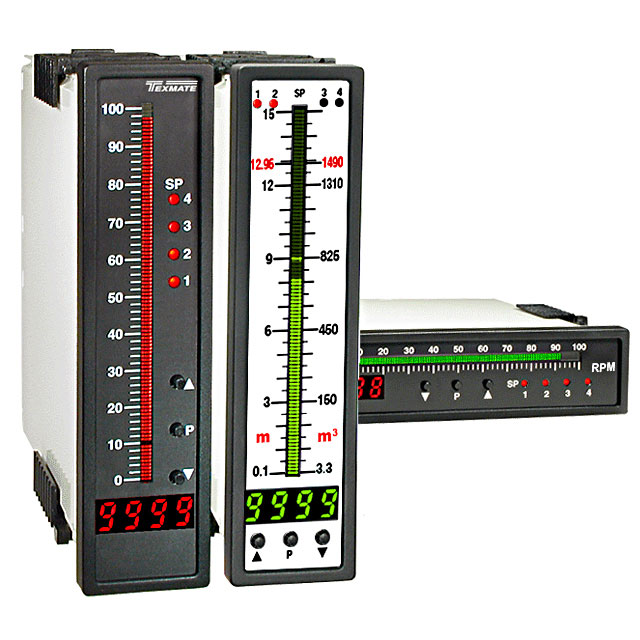

FL-BDPSF-ACV

Active

Texmate

0-600 VAC RMS DIRECT 0-9999 VAC

Search across all available documentation for this part.

Active

Texmate

0-600 VAC RMS DIRECT 0-9999 VAC

Technical Specifications

Parameters and characteristics for this part

Specification	FL-BDPSF-ACV

Display Characters - Height [z]	7.87 mm
Display Characters - Height [z]	0.31 in
Display Type	LED - Red Characters, LED - Red Bar Graph
Measuring Range [Max]	600 VAC
Measuring Range [Min]	200 VAC
Measuring Type	Voltage
Number of Characters Per Row	4
Output Type	Relay (2), Analog
Panel Cutout Dimensions [x]	144.53 mm
Panel Cutout Dimensions [y]	36.07 mm
Termination Style	Screw Terminal
Type	Voltmeter
Voltage - Supply [Max]	265 VAC, 300 VDC
Voltage - Supply [Min]	95 VDC, 85 VAC

Part	Output Type	Display Characters - Height [z]	Display Characters - Height [z]	Measuring Range [Max]	Measuring Range [Min]	Measuring Type	Number of Characters Per Row	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Display Type
Texmate FL-BDPSF-DCV	Analog Relay (2)	7.87 mm	0.31 in	200 V	2 VDC	Process	4	85 VAC 95 VDC	265 VAC 300 VDC	Screw Terminal	Process Meter	36.07 mm	144.53 mm	LED - Red Bar Graph LED - Red Characters
Texmate FL-BDPSF-PROCESSV	Analog Relay (2)	7.87 mm	0.31 in	10 V 20 mA	0 V 4 mA	Process	4	85 VAC 95 VDC	265 VAC 300 VDC	Screw Terminal	Process Meter	36.07 mm	144.53 mm	LED - Red Bar Graph LED - Red Characters
Texmate FL-BDPSF-ACA	Analog Relay (2)	7.87 mm	0.31 in	5 A	0 A	Current	4	85 VAC 95 VDC	265 VAC 300 VDC	Screw Terminal	Ammeter	36.07 mm	144.53 mm	LED - Red Bar Graph LED - Red Characters
Texmate FL-BDPSF-ACV	Analog Relay (2)	7.87 mm	0.31 in	600 VAC	200 VAC	Voltage	4	85 VAC 95 VDC	265 VAC 300 VDC	Screw Terminal	Voltmeter	36.07 mm	144.53 mm	LED - Red Bar Graph LED - Red Characters
Texmate FL-BDPSF-4-20MA	Analog Relay (2)	7.87 mm	0.31 in			Process	4	85 VAC 95 VDC	265 VAC 300 VDC	Screw Terminal	Process Meter	36.07 mm	144.53 mm	LED - Red Bar Graph LED - Red Characters

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 726.00

General part information

Voltmeter LED - Red Characters, LED - Red Bar Graph Display Panel Mount
