FL-BDPSF-PROCESSV
ActiveTexmate
0-10V PROCESS BARGRAPH CONTROLLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FL-BDPSF-PROCESSV |
|---|---|
| Display Characters - Height [z] | 7.87 mm |
| Display Characters - Height [z] | 0.31 in |
| Display Type | LED - Red Characters, LED - Red Bar Graph |
| Measuring Range [Max] | 10 V, 20 mA |
| Measuring Range [Min] | 0 V, 4 mA |
| Measuring Type | Process |
| Number of Characters Per Row | 4 |
| Output Type | Relay (2), Analog |
| Panel Cutout Dimensions [x] | 144.53 mm |
| Panel Cutout Dimensions [y] | 36.07 mm |
| Termination Style | Screw Terminal |
| Type | Process Meter |
| Voltage - Supply [Max] | 265 VAC, 300 VDC |
| Voltage - Supply [Min] | 95 VDC, 85 VAC |
FL-BDPSF Series
| Part | Output Type | Display Characters - Height [z] | Display Characters - Height [z] | Measuring Range [Max] | Measuring Range [Min] | Measuring Type | Number of Characters Per Row | Voltage - Supply [Min] | Voltage - Supply [Max] | Termination Style | Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Display Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texmate | Analog Relay (2) | 7.87 mm | 0.31 in | 200 V | 2 VDC | Process | 4 | 85 VAC 95 VDC | 265 VAC 300 VDC | Screw Terminal | Process Meter | 36.07 mm | 144.53 mm | LED - Red Bar Graph LED - Red Characters |
Texmate | Analog Relay (2) | 7.87 mm | 0.31 in | 10 V 20 mA | 0 V 4 mA | Process | 4 | 85 VAC 95 VDC | 265 VAC 300 VDC | Screw Terminal | Process Meter | 36.07 mm | 144.53 mm | LED - Red Bar Graph LED - Red Characters |
Texmate | Analog Relay (2) | 7.87 mm | 0.31 in | 5 A | 0 A | Current | 4 | 85 VAC 95 VDC | 265 VAC 300 VDC | Screw Terminal | Ammeter | 36.07 mm | 144.53 mm | LED - Red Bar Graph LED - Red Characters |
Texmate | Analog Relay (2) | 7.87 mm | 0.31 in | 600 VAC | 200 VAC | Voltage | 4 | 85 VAC 95 VDC | 265 VAC 300 VDC | Screw Terminal | Voltmeter | 36.07 mm | 144.53 mm | LED - Red Bar Graph LED - Red Characters |
Texmate | Analog Relay (2) | 7.87 mm | 0.31 in | Process | 4 | 85 VAC 95 VDC | 265 VAC 300 VDC | Screw Terminal | Process Meter | 36.07 mm | 144.53 mm | LED - Red Bar Graph LED - Red Characters |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 680.00 | |
Description
General part information
FL-BDPSF Series

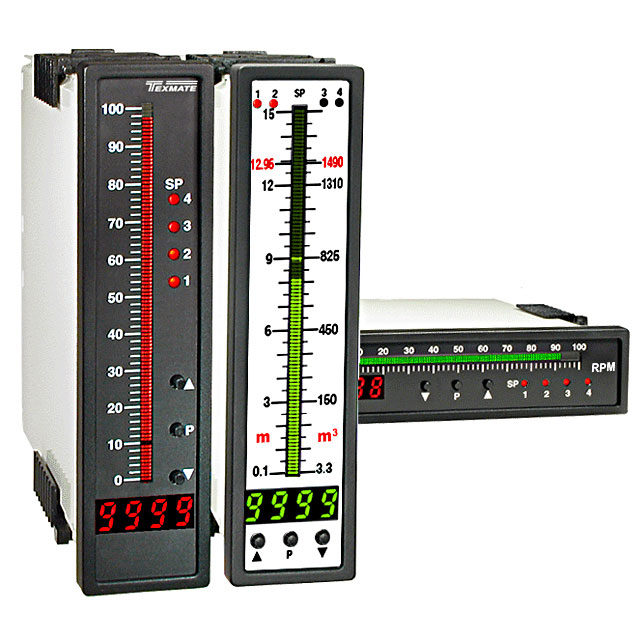

Process Meter LED - Red Characters, LED - Red Bar Graph Display Panel Mount
